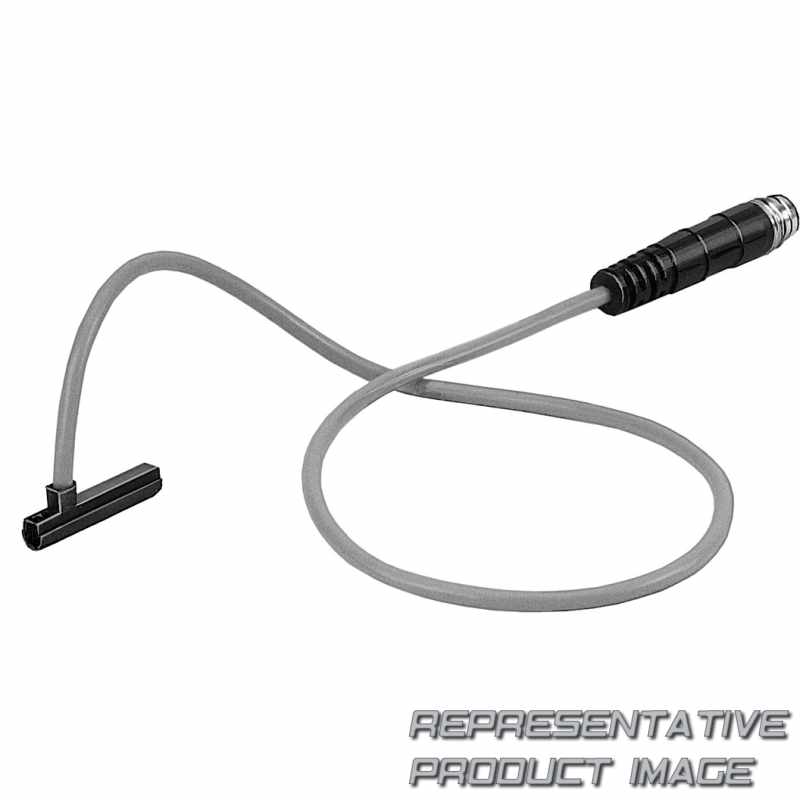

FESTO 173213 proximity sensor

Name: 173213 FESTO
Brand: FESTO
SKU: 687016-en-gbp
Price: 52.77 GBP
Availability: InStock

SME-10-SQ-LED-24

£52.77

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SME)	Proximity sensor
Design type (10)	For round slot, insertable in the slot lengthwise
Electrical connection, cable length, outlet orientation of connection (SQ)	Plug M8x1 with cable, 0.3 m, lateral

Switching status indication (LED)	Yellow LED
Rated operating voltage (24)	24 V DC

Pollution degree		3
Immunity to surge		0,8 kV
Degree of protection		IP65 IP67
Switching status indication		Yellow LED
Housing colour		Black
Mounting position		optional
Type of mounting		Clamped in C-slot Insertable in the slot lengthwise
Cable sheath colour		grey
Connection outlet orientation		Lateral
Electrical connection 1, number of connections/cores		3
Electrical connection 1, connection type		Cable with plug
Operational voltage range DC		12 V ... 27 V
Overload protection		Not available
Voltage drop		0 V
Max. output current		100 mA
Switch-off time		≤ 0,05 ms
Switching element function		N/O contact
Repetition accuracy		0,2 mm
Measuring principle		Magnetic reed
Instructions on use		Support / actuator-sensor overview "The right sensor for the actuator"
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark
Conforms to standard		EN 60947-5-2

LABS (PWIS) conformity		VDMA24364-B2-L
Insulation voltage		50 V
Ambient temperature with moving cable		-5 °C ... 70 °C
Material housing		Nickel-plated brass PPS TPE-U(PU) High-alloy stainless steel
Product weight		5 g
Tightening torque		0,1 Nm
Material cable sheath		TPE-U(PUR)
Cable length		0,3 m
Electrical connection 1, connection pattern		00991155
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Reverse polarity protection		no
Operational voltage range AC		12 V ... 27 V
Short circuit current rating		no
Max. switching capacity DC		1 W
Max. switching frequency		500 Hz
Switch-on time		≤ 0,6 ms
Switching output		Contacting, bipolar
Ambient temperature		-20 °C ... 70 °C
Measured variable		Position
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00991619
Design		For C-slot
