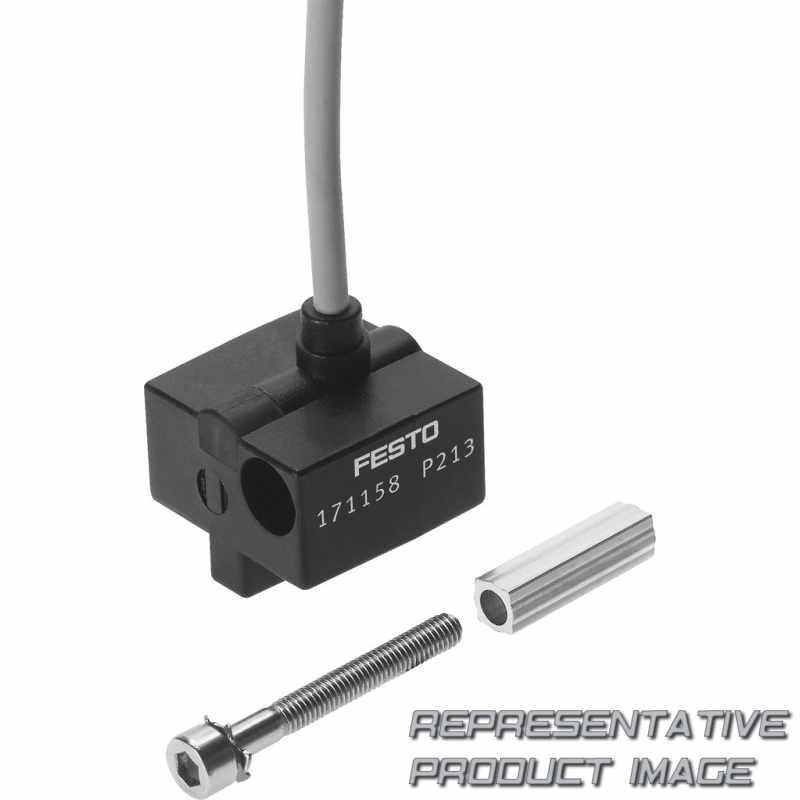

FESTO 171158 proximity sensor

Name: 171158 FESTO
Brand: FESTO
SKU: 671932-en-gbp
Price: 92.55 GBP
Availability: SoldOut

SMEO-8E-K-24-S6

£92.55 Limited stock only available on quotation

Specifications

Series (SMEO)	Proximity sensor, magnetic, reed
Design type (8)	For T-slot
Sensor version (E)	Mounting with accessories
Electrical connection, cable length (K)	Cable, 2.5 m or 7.5 m

Switching status indication	None
Rated operating voltage (24)	24 V DC
Variant (S6)	Heat-resistant

Pollution degree		3
Insulation voltage		50 V
Ambient temperature with moving cable		-40 °C ... 120 °C
Housing colour		Black
Mounting position		optional
Type of mounting		With accessories
Cable sheath colour		grey
Connection outlet orientation		Lateral
Electrical connection 1, connector system		Open end
Reverse polarity protection		For all electrical connections
Operational voltage range AC		0 V ... 30 V
Short circuit current rating		no
Max. switching capacity DC		10 W
Max. output current		500 mA
Switch-off time		0,03 ms
Switching element function		N/O contact
Repetition accuracy		0,2 mm
Measuring principle		Magnetic reed
Instructions on use		Support / actuator-sensor overview "The right sensor for the actuator"
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Symbol		00991624

LABS (PWIS) conformity		VDMA24364-B2-L
Degree of protection		IP65 IP67
Material housing		Anodised aluminium TPE-U(PU) High-alloy stainless steel
Product weight		40 g
Tightening torque		0,5 Nm
Material cable sheath		TPE-S
Cable length		2,5 m
Electrical connection 1, number of connections/cores		2
Electrical connection 1, connection type		Cable
Operational voltage range DC		0 V ... 30 V
Overload protection		Not available
Voltage drop		0,5 V
Max. switching capacity AC		10 VA
Max. switching frequency		500 Hz
Switch-on time		≤ 0,5 ms
Switching output		Contacting
Ambient temperature		-40 °C ... 120 °C
Measured variable		Position
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Design		For T-slot
