| Diameter d0 | 50 mm | ||
| Static load capacity C0 | 166000 N | ||
| Storage temperature (min. … max.) | -15 °C ... +80 °C | ||
| Note: Maximum permissible speed vmax | See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples) | ||
| Note: dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||

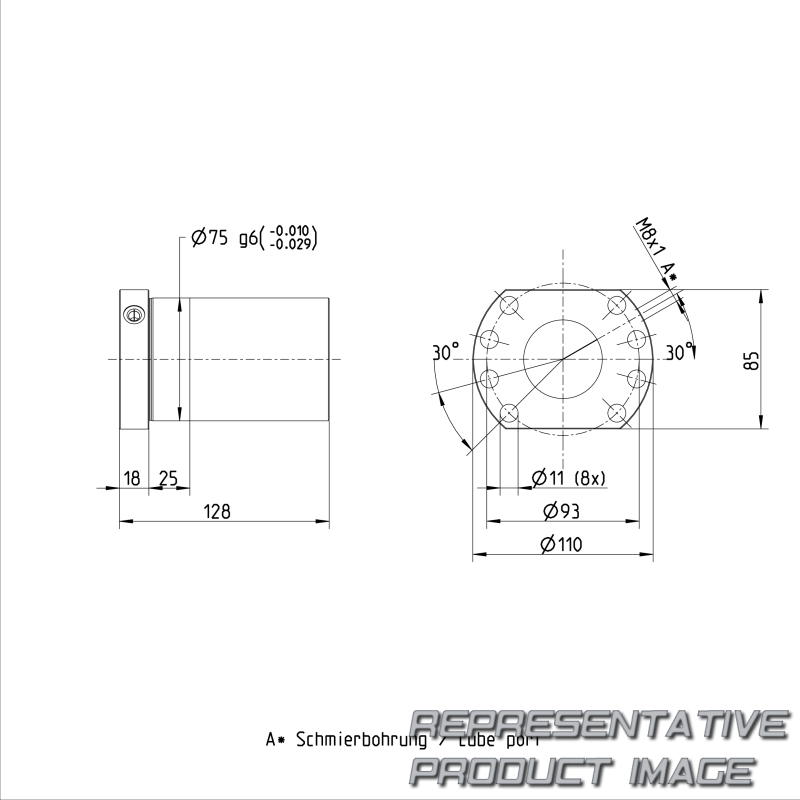

| Dimension L4 | 25 mm | ||
| Dimension L14 | 85 mm | ||
| Dimension D7 | 11 mm | ||
| Dimension D5 | 110 mm | ||
| Dimension D1 g6 | 75 mm | ||
| Dimension d1 | 48 mm | ||
| minimum operating temperature | |||
| Bearing temperature min | |||
| Version | Ball screw assembly | ||
| Footnote permissible operating temperature (min...max) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Footnote static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Nut type | FEM-E-B single nut with flange | ||
| Footnote dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Series | Standard series |
| Note: static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Note: permissible operating temperature (min. ... max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Operating temperature (min. … max.) | -10 °C ... +80 °C | ||
| Maximum permissible linear speed vmax (m/min) | 48 m/min | ||
| Dimension Sx | 5 mm | ||
| Dimension L3 | 18 mm | ||
| Dimension L10 | 110 mm | ||
| Dimension D6 | 93 mm | ||
| Dimension d2 | 43.8 mm | ||
| Dimension L | 128 | ||
| Hole pattern | BB1 | ||
| maximum operating temperature | |||
| Bearing temperature max | |||
| Category | A | ||
| Mass m | 2.75 g | ||
| Static load rating C0 | 166000 N | ||
| Permissible ambient temperature for mechanical system | - 15 °C ... + 80 °C | ||
| Dynamic load capacity C | 95300 N | ||
| Nominal size | 50 x 16R x 6 - 6 mm |
