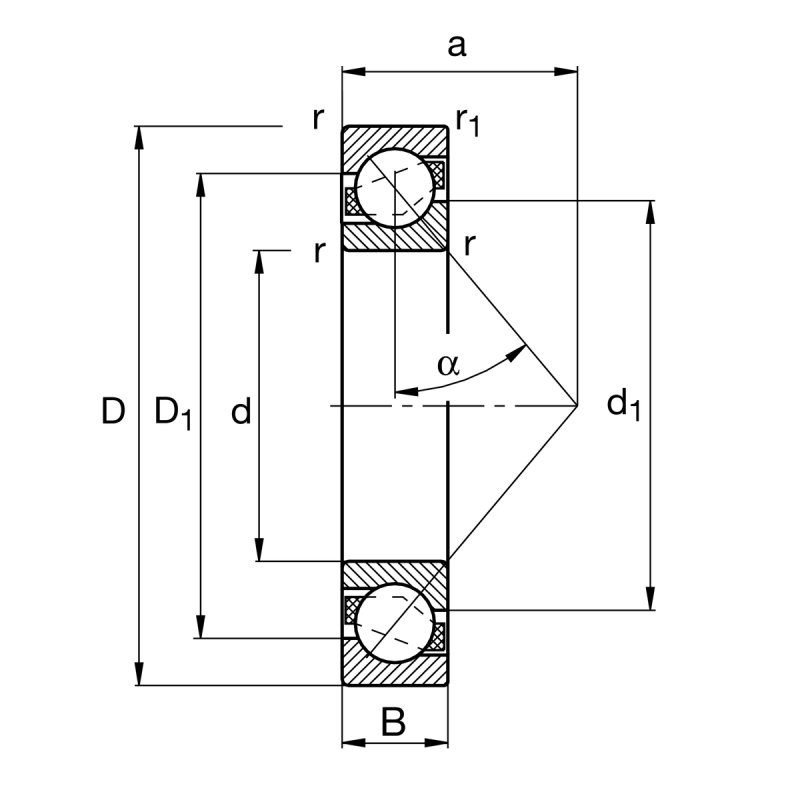

| Bore diameter | d | 1,400 | |
| Width | B | 185 | mm |
| Basic static load rating, radial | C0r | 7,900,000 | |
| Limiting speed | nG | 450 | 1/min |
| Outside diameter | D | 1,820 | |
| Basic dynamic load rating, radial | Cr | 2,050,000 | |
| Fatigue load limit, radial | Cur | 113,000 | |
| Reference speed | nϑr | 213 | 1/min |

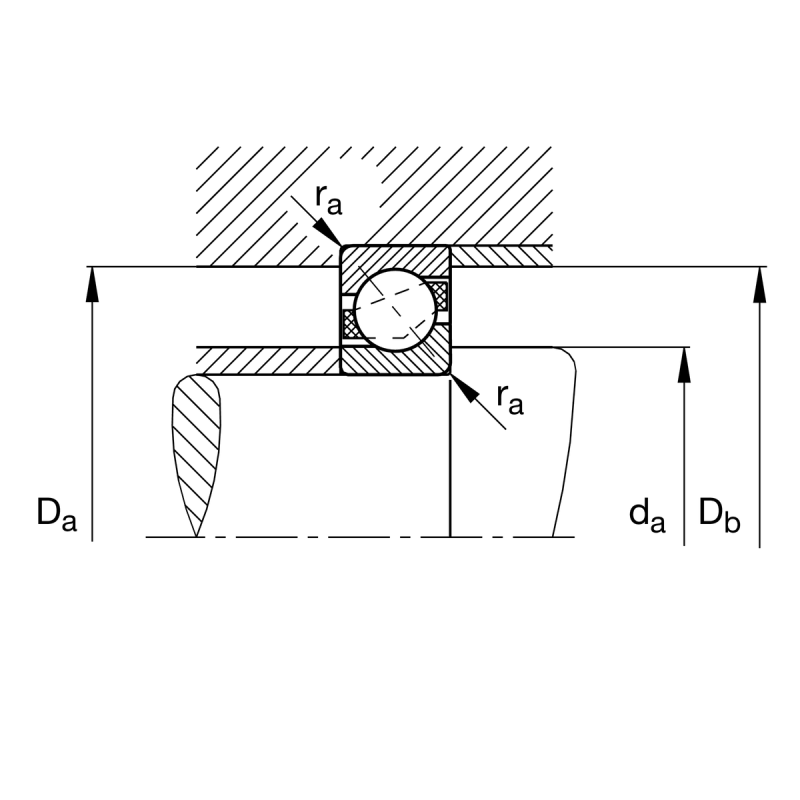

| Minimum diameter of shaft shoulder | da min | 1,434 | |
| Maximum diameter of housing shoulder | Db max | 1,802 | |
| Maximum fillet radius of housing | ra1 max | 4 | mm |
| Maximum diameter of housing shoulder | Da max | 1,786 | |
| Maximum fillet radius of shaft | ra max | 8 | mm |
| Minimum chamfer dimension | rmin | 5 | mm |
| Shoulder diameter on inner ring wide side face | d1 | 1,557.3 | |
| Contact angle | α | 30 | ° |
| Shoulder diameter on outer ring wide side face | D1 | 1,669.7 | |
| Distance between the apexes of the pressure cones | a | 557 | mm |
