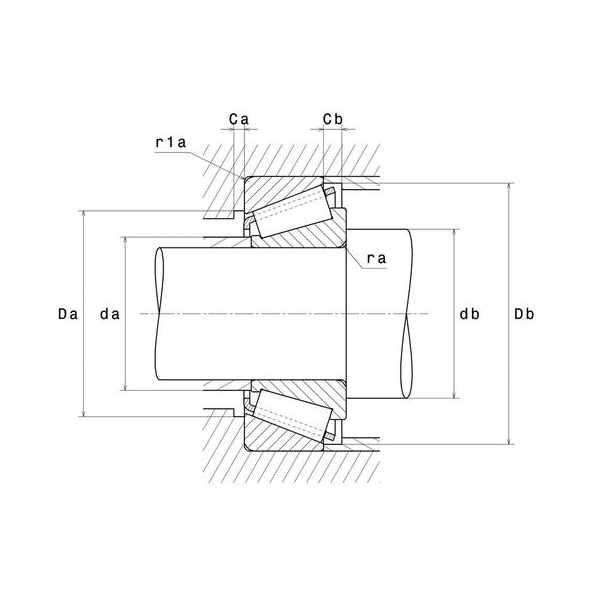

| r1a - Max fillet radius | 3,3 mm | ||
| Db min - Min OR shoulder diameter | 129 mm | ||
| db min - Min IR shoulder diameter | 85 mm | ||
| BSF - Characteristic rolling element frequency | 5,853 Hz | ||
| BPFI - Characteristic inner ring frequency | 9,875 Hz | ||
| Tmax - Max operating temperature | 120 °C | ||
| Nlim - Grease lubrication limit speed | 2700 tr/min | ||
| Y2 - Upper axial load coefficient | 1.67 | ||
| e - Coefficient | 0.36 | ||
| Cu - Fatigue limit load | 35,4 kN | ||
| C - Dynamic load | 251 kN | ||
| T - Total width | 41,275 mm | ||
| Brand | NTN |
| ra max - Max fillet radius | 3,5 mm | ||
| Da max - Max shoulder diameter OR | 121 mm | ||
| da max - Max shoulder diameter IR | 81 mm | ||
| FTF - Characteristic cage frequency | 0,419 Hz | ||
| BPFO - Characteristic outer ring frequency | 7,125 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nlim - Oil lubrication limit speed | 3700 tr/min | ||
| Y0 - Static axial load coefficient | 0.92 | ||
| A2 - Rating life coefficient | 1 | ||
| C0 - Static load | 293 kN | ||
| a - Charge load application point | 30,275 mm | ||
| C - Outer ring width | 31,75 mm |
