| Pollution degree | 3 | ||
| Insulation voltage | 2.000 V | ||
| Setting options | Permanently set | ||
| Product weight | 250 g | ||
| Mounting position | optional | ||
| Material cable sheath | PVC | ||
| Electrical connection 1, connector system | Open end | ||
| Electrical connection | 4-wire Cable | ||
| Utilisation category - inductive load | AC-14 DC-13 | ||
| Max. switching output voltage AC | 250 V | ||
| Switch-on point | 0 bar | ||
| Switching function | Threshold value with fixed hysteresis | ||
| Ambient temperature | -10 °C ... 50 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] | ||
| Measurement method | Pneumatic/electric pressure transducer | ||
| CE marking (see declaration of conformity) | To UK regulations for electrical equipment | ||
| Approval | CCC | ||
| Conforms to standard | EN 60947-5-1 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Degree of protection | IP62 | ||
| Material housing | ABS Die-cast aluminium Anodised aluminium | ||
| Pneumatic connection | M5 | ||
| Type of mounting | With through-hole | ||
| Cable length | 1 m | ||
| Electrical connection 1, connection type | Cable | ||
| Utilisation category - resistive load | AC-12 DC-12 | ||
| Max. switching output voltage DC | 250 V | ||
| Switch-off point | 0 bar | ||
| Switching element function | Changeover switch | ||
| Switching output | Contacting | ||
| Note on operating and pilot medium | Lubricated operation not possible | ||
| Operating pressure | 0 bar ... 0,25 bar | ||
| Measured variable | Relative pressure | ||
| CE mark (see declaration of conformity) | To EU Low Voltage Directive | ||

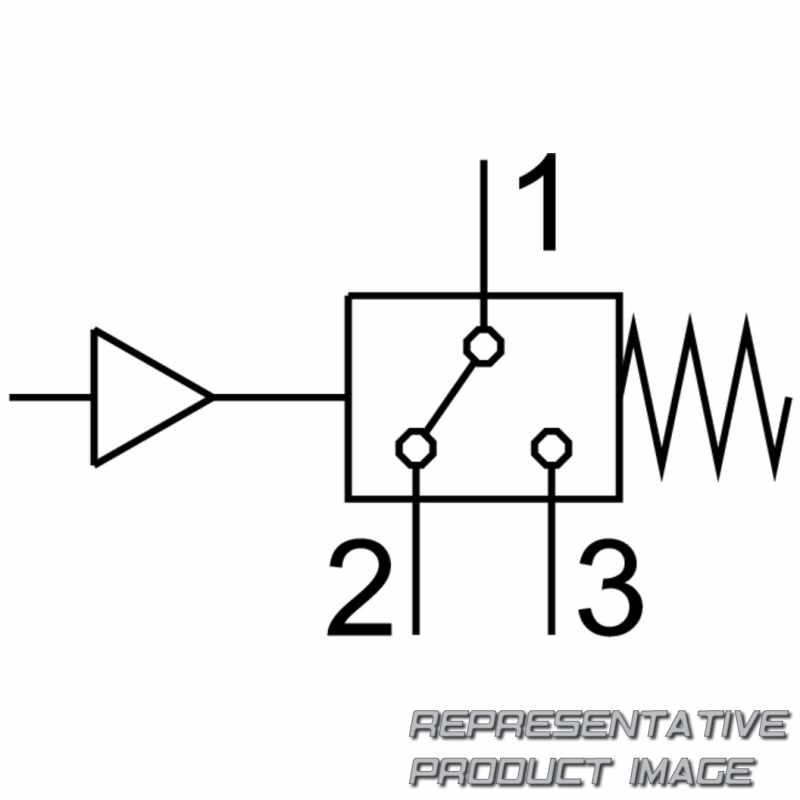

| Symbol | 00991470 |
