FESTO 108401 piston module

Name: 108401 FESTO
Brand: FESTO
SKU: 682953-en-gbp
Price: 409.16 GBP
Availability: InStock

DGO- 12- P-A B

£409.16

1 pcs. with 1 to 3 days delivery to United States

Specifications

Pneumatic connection	M5
Weight	320g

Stroke		10 mm ... 1.200 mm
Cushioning		Elastic cushioning rings/plates at both ends
Coupling design		Force-locking (magnetic)

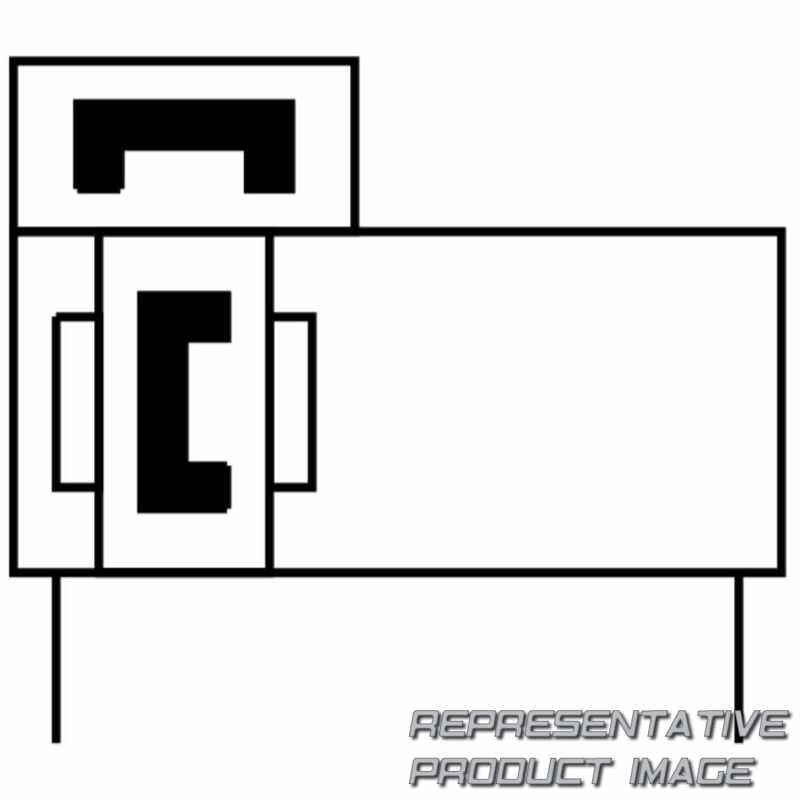

Symbol		991,736
Mode of operation		Double-acting
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke		68 N
Additional moving mass per 10 mm stroke		2 g
Pneumatic connection		M5
Material seals		NBR TPE-U(PU)

Piston diameter		12 mm
Mounting position		optional
Position detection		Via proximity switch
Operating pressure		2 bar ... 7 bar
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Ambient temperature		-20 °C ... 60 °C
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke		68 N
Basic weight for 0 mm stroke		320 g
Material cover		Aluminium
Material housing		High-alloy steel
