| Cable sheath colour | Black | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Note on materials | RoHS-compliant Free of halogen | ||
| Ambient temperature with moving cable | -20 °C ... 80 °C | ||
| Note on degree of protection | In assembled state | ||
| Nominal cross section conductor | 0,324 mm² | ||
| Cable diameter | 6,2 mm | ||
| Bending radius, fixed cable | ≥ 125 mm | ||
| Cable characteristic | Standard | ||
| Immunity to surge | 0,3 kV | ||
| Operational voltage range DC | 0 V ... 30 V | ||
| Electrical connection 2, used connections/cores | 9 | ||
| Electrical connection 2, connector system | USB 3.0 type A | ||
| Electrical connection 2, connection type | Plugs | ||
| Electrical connection 2, function | Controller side | ||
| Electrical connection 1, type of mounting | 2x screw M2x0.4 | ||

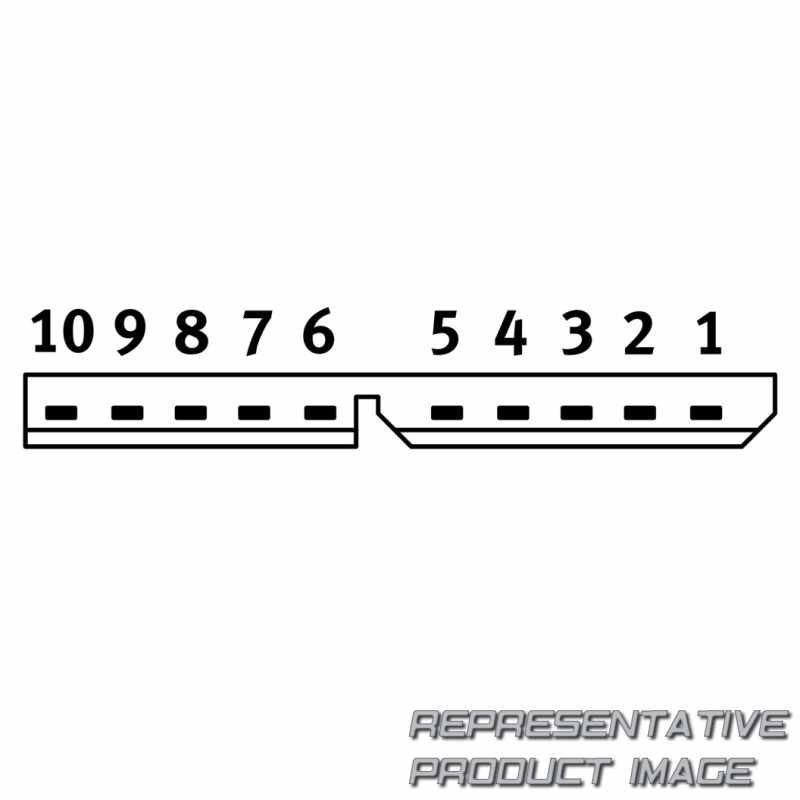

| Electrical connection 1, number of connections/cores | 10 | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection 1, design | Angular | ||
| Product weight | 422 g |
| Material cable sheath | PVC | ||
| Pollution degree | 1 | ||
| CE mark (see declaration of conformity) | In accordance with EU RoHS Directive | ||
| Ambient temperature | -20 °C ... 80 °C | ||
| Degree of protection | IP20 | ||
| Cable structure | 2 x AWG22 + 2 x (2 x AWG26)C + 1 x (2 x AWG28) Shielded | ||
| Bending radius, moving cable | ≥ 125 mm | ||
| Test conditions cable | Test conditions on request | ||
| Cable length | 5 m | ||
| Current rating at 40°C | 1,8 A | ||
| Electrical connection 2, connection pattern | 00995730 | ||
| Electrical connection 2, number of connections/cores | 9 | ||
| Electrical connection 2, cable outlet | Straight | ||
| Electrical connection 2, design | Angular | ||
| Electrical connection 1, connection pattern | 00995732 | ||
| Electrical connection 1, used connections/cores | 9 | ||
| Electrical connection 1, connector system | USB 3.0 type B micro | ||
| Electrical connection 1, connection type | Plugs | ||
| Electrical connection 1, function | Field device side | ||
| Cable designation | Without inscription label holder |
