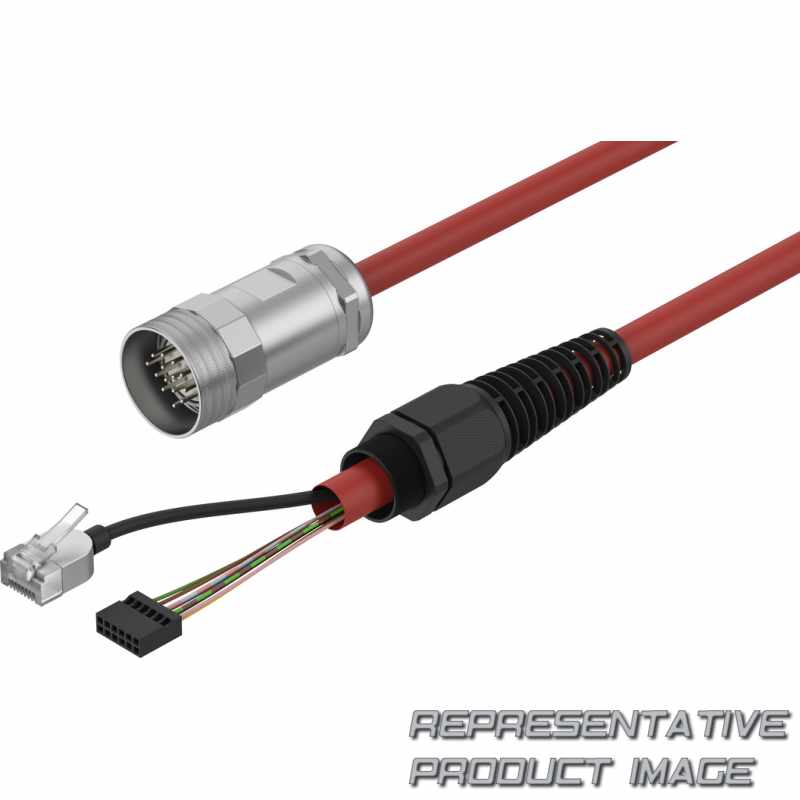

FESTO 8126916 connecting cable

Name: 8126916 FESTO
Brand: FESTO
SKU: 700106-en-gbp
Price: 560.81 GBP
Availability: InStock

NEBC-R3Z12G20-KH-5-N-SBS-RSG17-ET-S1

£560.81

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBC)	Connecting cable for control ers
Product version	Standard
Connection technology left, field device side (R3Z12)	RJ45 and socket strip 12-pin
Cable outlet left (G)	Straight
Number of pins/wires on the left (20)	20
Additional socket functions	None
Cable characteristic (K)	Standard

Cable design (H)	Hybrid cable
Cable length [m] (5)	5
Cable identification (N)	Without label holder
Type of connector (SBS)	Plug, left socket strip/right plug
Connection technology right, control er side (RS)	Round plug
Plug (G)	Straight
Number of pins/wires on the right (17)	17

Material insulating sheath		PP
Material cable sheath		TPE-U(PUR)
Pollution degree		3
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Ambient temperature with moving cable		0 °C ... 40 °C
Note on degree of protection		In assembled state
Nominal cross section conductor		0,128 mm²
Cable diameter tolerance		± 1 mm
Bending radius, moving cable		≥ 130 mm
Test conditions cable		Test conditions on request
Cable length		5 m
Immunity to surge		6 kV
Nominal operating voltage DC		24 V
Electrical connection 2, connection pattern		00997346
Electrical connection 2, used connections/cores		14
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Round
Electrical connection 1, connection pattern		00997347
Electrical connection 1, used connections/cores		14
Electrical connection 1, connector system		RJ45 and socket strip 12 pins, 2 rows
Electrical connection 1, connection type		Plug and socket strip
Electrical connection 1, function		Field device side
Cable designation		Without inscription label holder

Cable sheath colour		Red
Corrosion resistance class CRC		0 - No corrosion stress
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Storage temperature		-20 °C ... 70 °C
Ambient temperature		0 °C ... 40 °C
Degree of protection		IP65
Cable structure		4 x (1 x 0.128 mm²) + 10 x 0.128 mm²
Cable diameter		8 mm
Bending radius, fixed cable		≥ 130 mm
Cable characteristic		Standard
Shielding		no
Current rating at 40°C		11,7 A
Operational voltage range DC		0 V ... 24 V
electrical connection 2, type of mounting		Threaded
Electrical connection 2, number of connections/cores		17
Electrical connection 2, connection type		Hybrid plug
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, number of connections/cores		20
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Angular
Product weight		680 g
