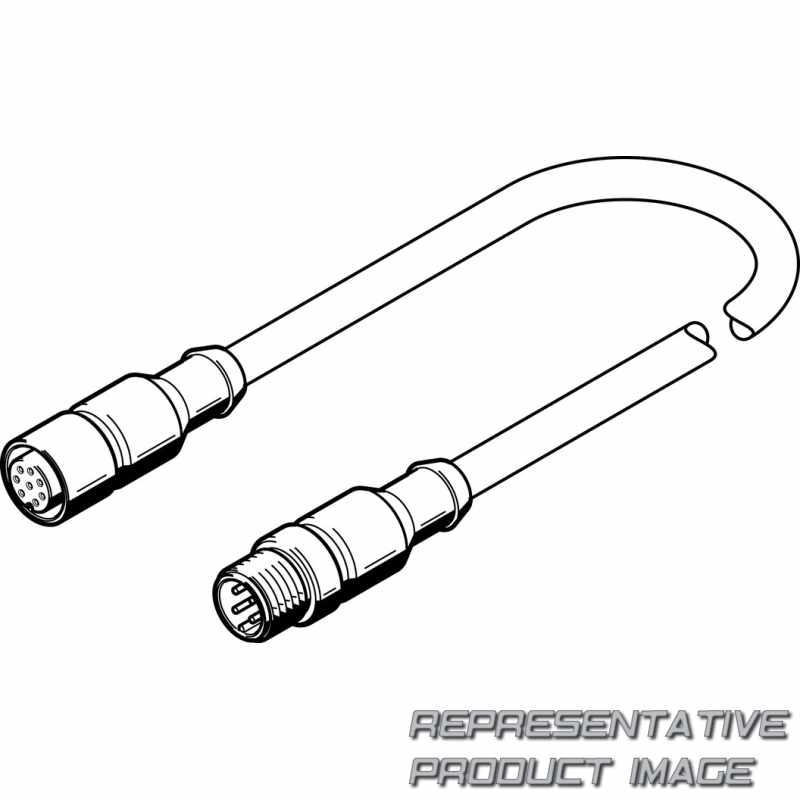

FESTO 553575 connecting cable

Name: 553575 FESTO
Brand: FESTO
SKU: 690188-en-gbp
Price: 84.82 GBP
Availability: InStock

NEBV-M12G8-K-2-M12G4

£84.82 2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBV)	Connecting cable for valves
Product version	Standard
Connection technology left, field device side (M12)	Socket M12x1 A-coded, EN 61076-2-101
Cable outlet left (G)	Straight
Number of pins/wires on the left (8)	8
Display	None
Additional socket functions	None
Circuitry	None
Cable characteristic (K)	Standard

Cable design	Standard
Cable length [m] (2)	2
Cable identification	With label holder
Connection technology right, control er side (M12)	Plug M12x1 A-coded, EN 61076-2-101
Connection technology right, controller side (M12)	Plug M12x1 A-coded, EN 61076-2-101
Plug (G)	Straight
Number of pins/wires on the right (4)	4
Degree of protection, electrical system	Standard

Material insulating sheath		PP
Material seals		NBR
Housing colour		Black
Cable sheath colour		grey
Corrosion resistance class CRC		2 - Moderate corrosion stress
Note on materials		RoHS-compliant Free of halogen
CE marking (see declaration of conformity)		To UK RoHS instructions
Ambient temperature with moving cable		-5 °C ... 80 °C
Note on degree of protection		In assembled state
Nominal cross section conductor		0,34 mm²
Cable diameter tolerance		± 0.2 mm
Bending radius, moving cable		≥ 58 mm
Cable characteristic		Standard
Immunity to surge		0,8 kV
Operational voltage range AC		0 V ... 30 V
Electrical connection 2, connection pattern		00995386
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, number of connections/cores		8
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Round
Cable designation		Without inscription label holder

Material electrical contact		Gold-plated brass
Material screw-type lock		Nickel-plated brass
Material housing		TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
LABS (PWIS) conformity		VDMA24364-B2-L
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature		-25 °C ... 85 °C
Degree of protection		IP67
Cable structure		4 x 0.34 mm² Shielded
Cable diameter		5,6 mm
Bending radius, fixed cable		≥ 29 mm
Cable length		2 m
Current rating at 40°C		2 A
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		Screw-type lock
Electrical connection 2, number of connections/cores		4
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Round
Electrical connection 1, connection pattern		00992265
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 1, connection type		Socket
Electrical connection 1, function		Field device side
Conforms to standard		EN 61076-2-101
