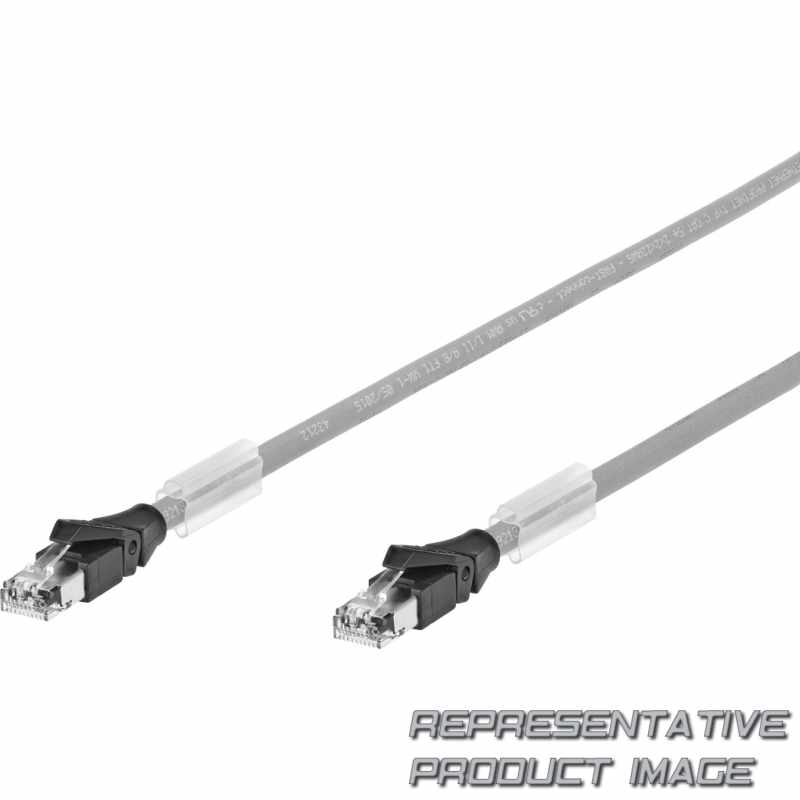

FESTO 8040455 connecting cable

Name: 8040455 FESTO
Brand: FESTO
SKU: 689515-en-gbp
Price: 35.06 GBP
Availability: InStock

NEBC-R3G4-ES-1-S-R3G4-ET

£35.06

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBC)	Connecting cable for control ers
Product version	Standard
Connection technology left, field device side (R3)	RJ45
Cable outlet left (G)	Straight
Number of pins/wires on the left (4)	4
Additional socket functions	None
Cable characteristic (E)	Suitable for energy chains

Cable design (S)	With shielding
Cable length [m] (1)	1
Cable identification	With label holder
Type of connector (S)	Plug at both ends
Connection technology right, control er side (R3)	RJ45
Plug (G)	Straight
Number of pins/wires on the right (4)	4

Material insulating sheath		PE
Housing colour		Black
Cable sheath colour		Green
Corrosion resistance class CRC		1 - Low corrosion stress
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature with moving cable		-20 °C ... 60 °C
Special characteristics		Oil resistant
Conductor nominal cross section		AWG22
Cable structure		4 x 0.34 mm² (star quad)
Cable diameter		6,7 mm
Bending radius, fixed cable		≥ 40 mm
Cable characteristic		Suitable for energy chains
Specification Ethernet cable		Type: CAT.5
Note on immunity to surge		Due to screening, a leakage flow of up to 20 mA is permissible.
Current rating at 40°C		1,3 A

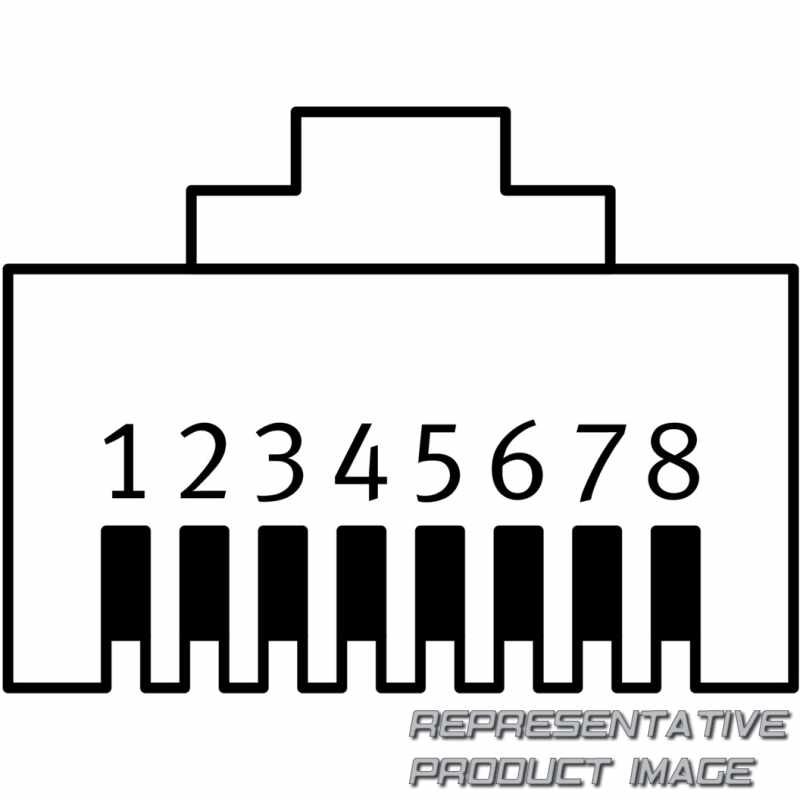

Electrical connection 2, connection pattern		00995653
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		RJ45 to IEC 60603-7-3
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Snap-in locking
Electrical connection 1, number of connections/cores		8
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Angular
Product weight		89,5 g
Cable designation		With label holder

Material electrical contact		Brass Bronze
Material housing		Nickel-plated brass PA
Material cable sheath		TPE-U(PUR)
Pollution degree		3
CE marking (see declaration of conformity)		To UK RoHS instructions
Storage temperature		-25 °C ... 80 °C
Ambient temperature		-25 °C ... 80 °C
Degree of protection		IP20
Nominal cross section conductor		0,34 mm²
Cable diameter tolerance		± 0.3 mm
Bending radius, moving cable		≥ 100 mm
Test conditions cable		Bending strength: to Festo standard Test conditions on request Energy chain: 2 million cycles, bending radius 100 mm
Cable length		1 m
Transmission characteristics		In accordance with category 5, EN 50173, class D In accordance with category 5, ISO/IEC 11801, class D
Immunity to surge		0,8 kV
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		Snap-in locking
Electrical connection 2, number of connections/cores		8
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Angular
Electrical connection 1, connection pattern		00995653
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		RJ45 to IEC 60603-7-3
Electrical connection 1, connection type		Plugs
Electrical connection 1, function		Field device side
Frequency of connection		50
