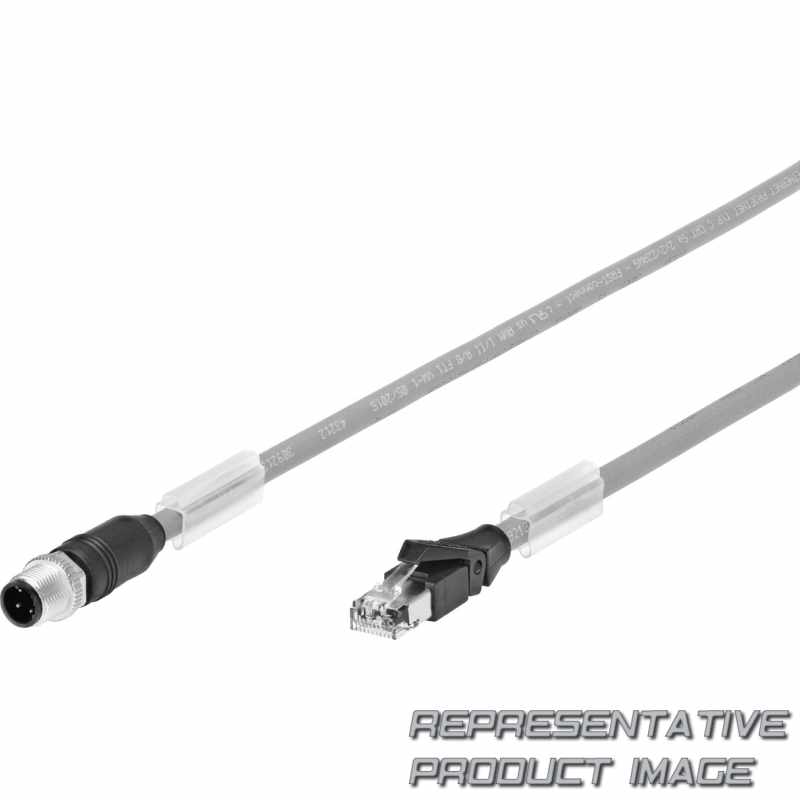

FESTO 8040452 connecting cable

Name: 8040452 FESTO
Brand: FESTO
SKU: 684784-en-gbp
Price: 55.47 GBP
Availability: InStock

NEBC-D12G4-ES-3-S-R3G4-ET

£55.47

16 pcs. with 1 to 3 days delivery to United States

Specifications

Series (NEBC)	Connecting cable for control ers
Product version	Standard
Connection technology left, field device side (D12)	M12, D-coded
Cable outlet left (G)	Straight
Number of pins/wires on the left (4)	4
Additional socket functions	None
Cable characteristic (E)	Suitable for energy chains

Cable design (S)	With shielding
Cable length [m] (3)	3
Cable identification	With label holder
Type of connector (S)	Plug at both ends
Connection technology right, control er side (R3)	RJ45
Plug (G)	Straight
Number of pins/wires on the right (4)	4

Material threaded sleeve		Die-cast zinc
Material electrical contact		Brass Bronze
Housing colour		Black
Cable sheath colour		Green
Corrosion resistance class CRC		1 - Low corrosion stress
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		In accordance with EU RoHS Directive
Ambient temperature with moving cable		-20 °C ... 60 °C
Special characteristics		Oil resistant
Conductor nominal cross section		AWG22
Cable structure		4 x 0.34 mm² (star quad)
Cable diameter		6,7 mm
Bending radius, fixed cable		≥ 40 mm
Cable characteristic		Suitable for energy chains
Specification Ethernet cable		Type: CAT.5
Note on immunity to surge		Due to screening, a leakage flow of up to 20 mA is permissible.
Current rating at 40°C		1,3 A
Electrical connection 2, connection pattern		00995653
Electrical connection 2, used connections/cores		4
Electrical connection 2, connector system		RJ45 to IEC 60603-7-3
Electrical connection 2, connection type		Plugs
Electrical connection 2, function		Controller side
Electrical connection 1, type of mounting		Screw-type lock with 13 mm hexagon and longitudinal knurl
Electrical connection 1, number of connections/cores		4
Electrical connection 1, cable outlet		Straight
Electrical connection 1, design		Round
Product weight		219,5 g
Cable designation		With label holder

Material insulating sheath		PE
Material screw-type lock		Die-cast zinc, nickel-plated
Material housing		Nickel-plated brass PA TPE-U(PUR)
Material cable sheath		TPE-U(PUR)
Pollution degree		3
CE marking (see declaration of conformity)		To UK RoHS instructions
Storage temperature		-25 °C ... 80 °C
Ambient temperature		-25 °C ... 80 °C
Degree of protection		IP65 IP67
Nominal cross section conductor		0,34 mm²
Cable diameter tolerance		± 0.3 mm
Bending radius, moving cable		≥ 100 mm
Test conditions cable		Bending strength: to Festo standard Test conditions on request Energy chain: 2 million cycles, bending radius 100 mm
Cable length		3 m
Transmission characteristics		In accordance with category 5, EN 50173, class D In accordance with category 5, ISO/IEC 11801, class D
Immunity to surge		0,8 kV
Operational voltage range DC		0 V ... 30 V
electrical connection 2, type of mounting		Snap-in locking
Electrical connection 2, number of connections/cores		8
Electrical connection 2, cable outlet		Straight
Electrical connection 2, design		Angular
Electrical connection 1, connection pattern		00995612
Electrical connection 1, used connections/cores		4
Electrical connection 1, connector system		M12x1, D-coded to EN 61076-2-101
Electrical connection 1, connection type		Plugs
Electrical connection 1, function		Field device side
Frequency of connection		50
