| Material housing | PP | ||
| Product weight | 190 g | ||
| Corrosion resistance class CRC | 2 - Moderate corrosion stress | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Flow rate to atmosphere | ≥ 4.700 l/min | ||

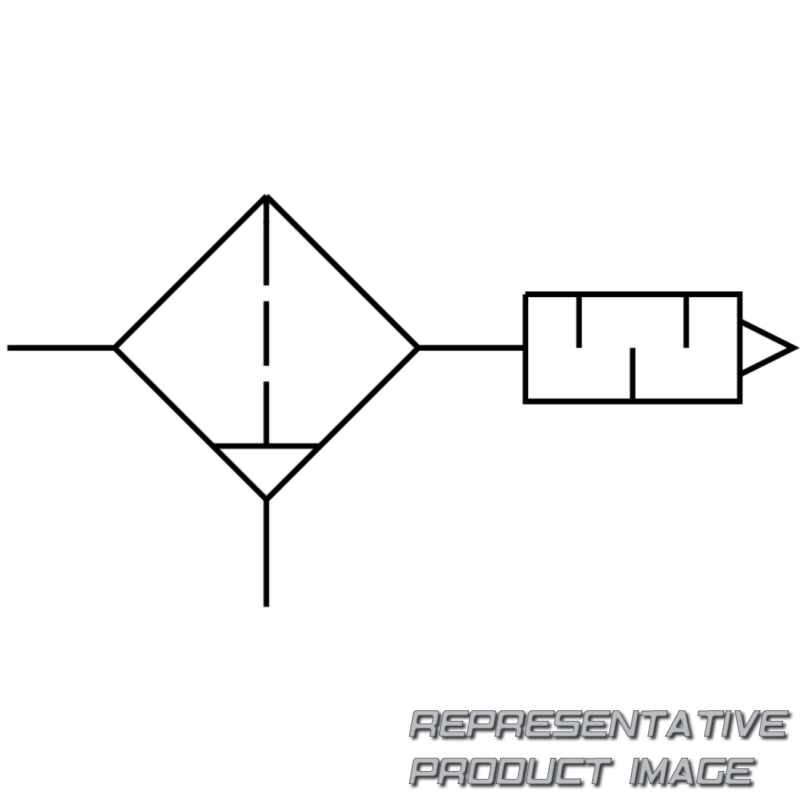

| Symbol | 00991531 | ||
| Grade of filtration | 1 µm | ||
| Size | G3/8 |
| Pneumatic connection | G3/8 | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Noise reduction | Reduction by 40 dB | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] | ||
| Operating pressure | 0 psi ... 232 psi | ||
| Condensate drain | Manually rotating | ||
| Mounting position | Vertical +/-5° |
