| Suitable for ejector pulse | ≤ 7 bar | ||
| Material housing | PP reinforced | ||
| Material seals | NBR | ||
| Vacuum connection | G1/2 | ||
| Type of mounting | In-line installation Via wall/surface bracket | ||
| Max. tightening torque | 20,5 Nm | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] | ||
| Operating pressure | -0,95 bar ... 0 bar | ||
| Grade of filtration | 80 µm |
| Material bowl | PA | ||
| Material filter | PE | ||
| Note on materials | Contains paint-wetting impairment substances RoHS-compliant | ||
| Pneumatic connection | G1/2 | ||
| Product weight | 162 g | ||
| Ambient temperature | -5 °C ... 50 °C | ||
| Note on operating pressure | Only for use in open vacuum systems | ||

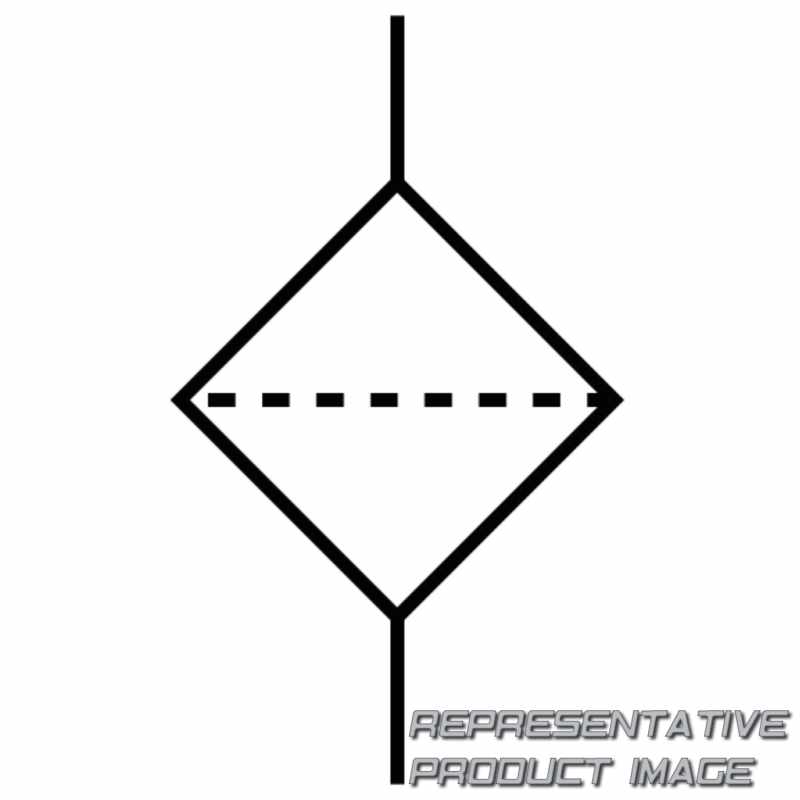

| Symbol | 00991483 | ||
| Mounting position | Vertical |
