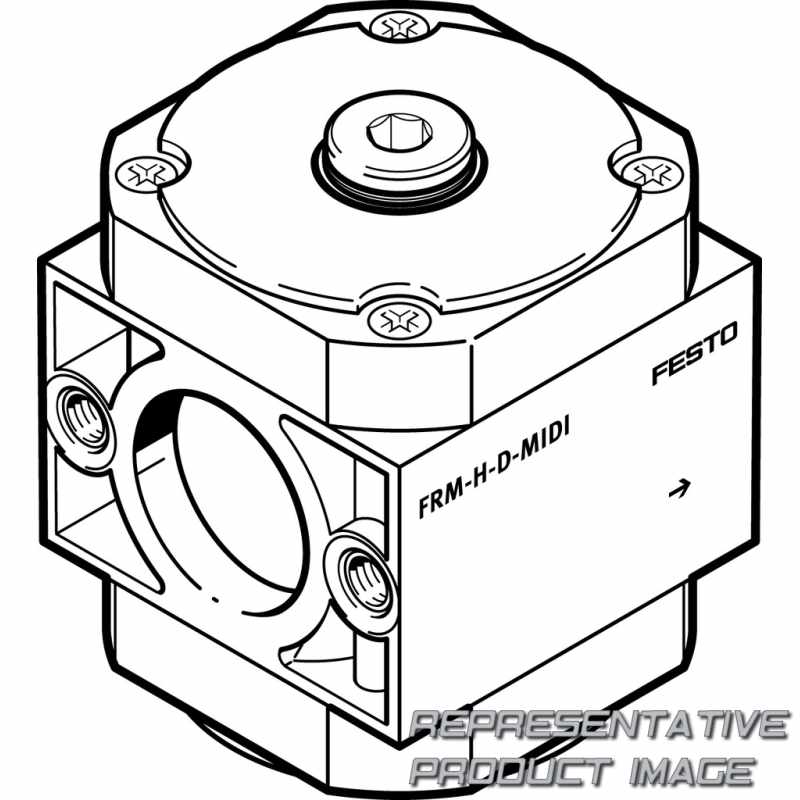

FESTO 170689 branching module

Name: 170689 FESTO
Brand: FESTO
SKU: 672320-en-gbp
Price: 94.24 GBP
Availability: InStock

FRM-H-D-MAXI

£94.24

1 pcs. with 2 to 5 days delivery to United States

Specifications

Series (FRM)	Branching module
Additional function (H)	With integrated non-return function
Pneumatic connection	None

Version (D)	D series, metal
Size (MAXI)	Grid dimension 66 mm (without connecting plates)

Material housing		Die-cast zinc
Pneumatic connection, port 4		G1/4
Product weight		446 g
Media temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Operating pressure		0,25 bar ... 16 bar
Design		Branching module

Note on materials		RoHS-compliant
Pneumatic connection, port 3		G3/4
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate in main flow direction 1->2		13.500 l/min
Symbol		00991511
Mounting position		optional
