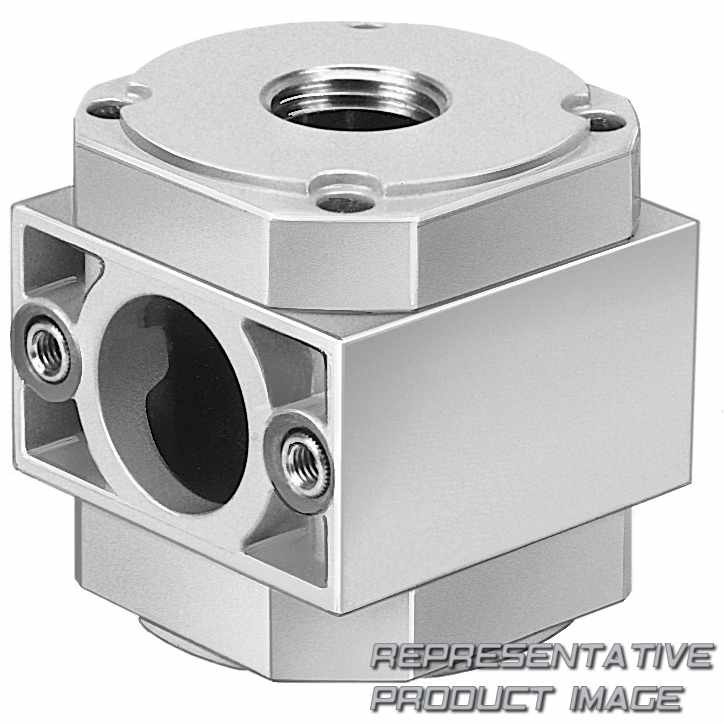

FESTO 170686 branching module

Name: 170686 FESTO
Brand: FESTO
SKU: 667967-en-gbp
Price: 72.87 GBP
Availability: InStock

FRM-D-MAXI

£72.87

4 pcs. with 1 to 3 days delivery to United States

Specifications

Version (D)	D series, metal
Size (MAXI)	Grid dimension 66 mm (without connecting plates)

Material housing		Die-cast zinc
Pneumatic connection, port 4		G1/4
Product weight		442 g
Media temperature		-10 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Operating pressure		0 bar ... 16 bar
Design		Branching module

Note on materials		RoHS-compliant
Pneumatic connection, port 3		G3/4
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:-:-] Inert gases
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate in main flow direction 1->2		20.000 l/min
Symbol		00991510
Mounting position		optional
