FESTO 186060 service unit combination

Name: 186060 FESTO
Brand: FESTO
SKU: 676073-en-gbp
Price: 1006.19 GBP
Availability: SoldOut

FRC-1/2-D-MAXI-KE-A

£1,006.19

Limited stock only available on quotation

Specifications

Size (MAXI)	Grid dimension 66 mm (without connecting plates)
Service unit combination (KE)	Filter regulator, lubricator, on/off valve electrically actuated, 24
Condensate drain (A)	Fully automatic

Material bowl		PC
Pneumatic connection, port 2		G1/2
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,3 bar
Operating pressure		3 bar ... 12 bar

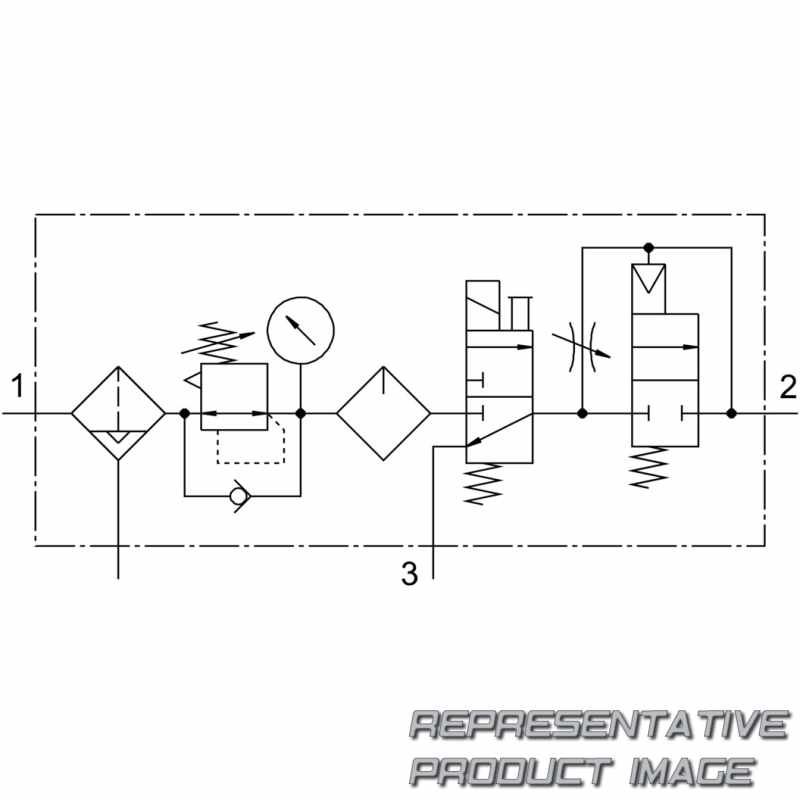

Symbol		00991764
Max. condensate volume		80 ml
Condensate drain		Fully automatic
Mounting position		Vertical +/-5°
Series		D

Material housing		Die-cast zinc
Pneumatic connection, port 1		G1/2
Product weight		4.200 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		3.500 l/min
Pressure regulation range		2,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard
Design		On/off valve Filter regulator with pressure gauge Proportional standard mist lubricator Safety start-up valve
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Maxi
