FESTO 185830 service unit combination

Name: 185830 FESTO
Brand: FESTO
SKU: 680610-en-gbp
Price: 405.81 GBP
Availability: InStock

FRC-1/4-D-MINI-KE-A

£405.81 2 pcs. with 1 to 3 days delivery to United States

Specifications

Size (MINI)	Grid dimension 40 mm (without connecting plates)
Service unit combination (KE)	Filter regulator, lubricator, on/off valve electrically actuated, 24
Condensate drain (A)	Fully automatic

Material bowl		PC
Pneumatic connection, port 2		G1/4
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,15 bar
Operating pressure		3 bar ... 12 bar

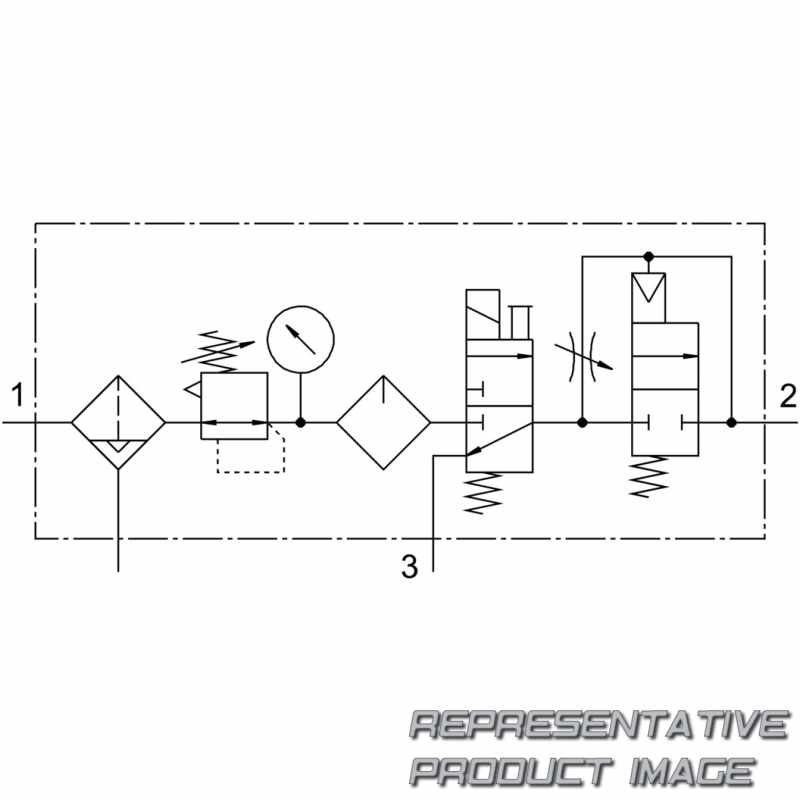

Symbol		00991564
Max. condensate volume		22 ml
Condensate drain		Fully automatic
Mounting position		Vertical +/-5°
Series		D

Material housing		Die-cast zinc
Pneumatic connection, port 1		G1/4
Product weight		1.200 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		650 l/min
Pressure regulation range		2,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard
Design		On/off valve Filter regulator with pressure gauge Proportional standard mist lubricator Safety start-up valve
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Mini
