FESTO 185792 service unit combination

Name: 185792 FESTO
Brand: FESTO
SKU: 676436-en-gbp
Price: 300.02 GBP
Availability: SoldOut

FRC-1/8-D-MINI-KA-A

£300.02

Limited stock only available on quotation

Specifications

Size (MINI)	Grid dimension 40 mm (without connecting plates)
Service unit combination (KA)	Filter regulator, branching module and lubricator
Condensate drain (A)	Fully automatic

Material bowl		PC
Pneumatic connection, port 2		G1/8
Type of mounting		In-line installation With accessories Either:
Ambient temperature		-10 °C ... 60 °C
Air purity class at output		Compressed air to ISO 8573-1:2010 [7:4:-] Inert gases
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-] Inert gases
Max. pressure hysteresis		0,15 bar
Operating pressure		2 bar ... 12 bar
Symbol		00991545
Max. condensate volume		22 ml
Condensate drain		Fully automatic
Mounting position		Vertical +/-5°
Series		D

Material housing		Die-cast zinc
Pneumatic connection, port 1		G1/8
Product weight		1.000 g
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Standard nominal flow rate		650 l/min
Pressure regulation range		0,5 bar ... 12 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		With pressure gauge
Bowl guard		Metal bowl guard

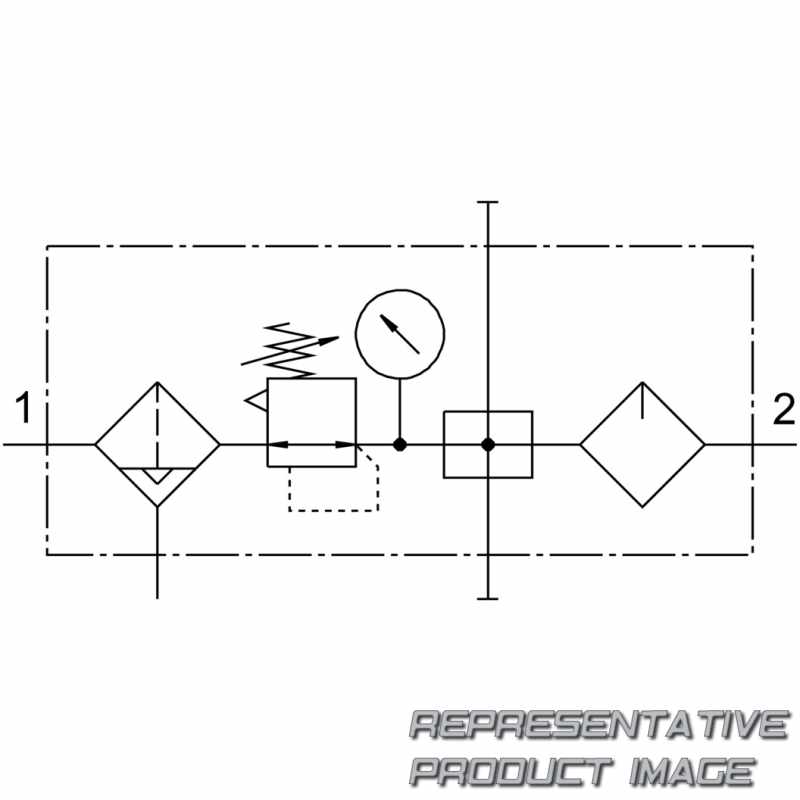

Design		Branching module Filter regulator with pressure gauge Proportional standard mist lubricator
Grade of filtration		40 µm
Actuator lock		Rotary knob with detent
Size		Mini
