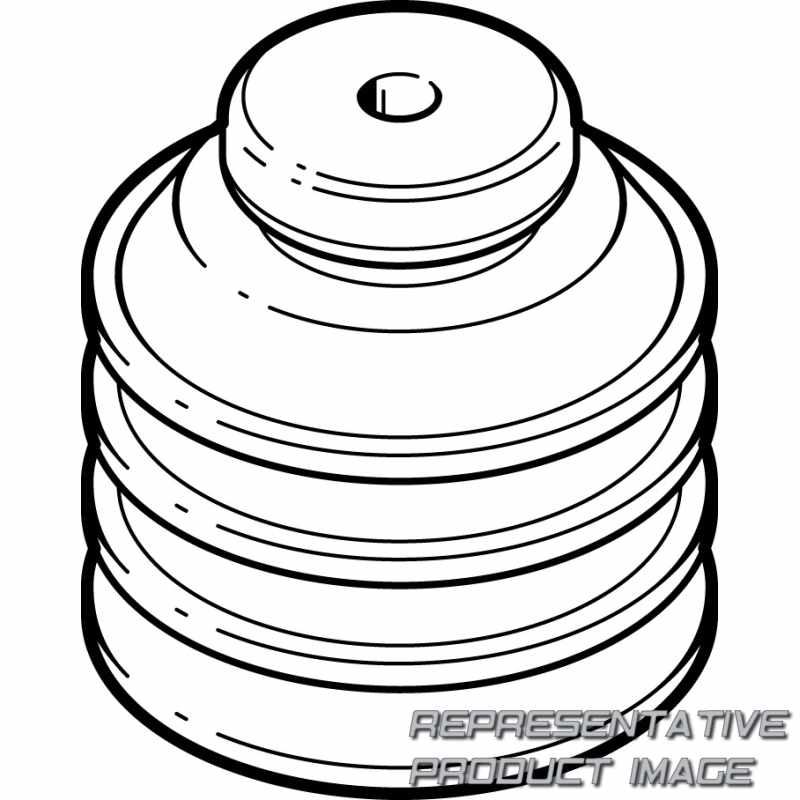

FESTO 191076 suction cup without connector

Name: 191076 FESTO
Brand: FESTO
SKU: 674989-en-gbp
Price: 30.88 GBP
Availability: InStock

ESV-40-CS

£30.88

7 pcs. with 1 to 3 days delivery to United States

Specifications

Material (S)	Silicone
Additional features	None

Material suction cup		VMQ (silicone)
Shore hardness		50 +/- 5
Product weight		13 g
Ambient temperature		-30 °C ... 180 °C
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Symbol		00991485
Position of connection		Top
Suction cup diameter		40 mm
Height compensator for suction cup		12,8 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Colour		Transparent
Holding force at nominal operating pressure		42,4 N
Suitable for use with food		See supplementary material information
Suction cup shape		Round bellows 3.5 convolutions
Mounting position		optional
Suction cup volume		19,72 cm³
Min. workpiece radius		100 mm
