8102168 Festo

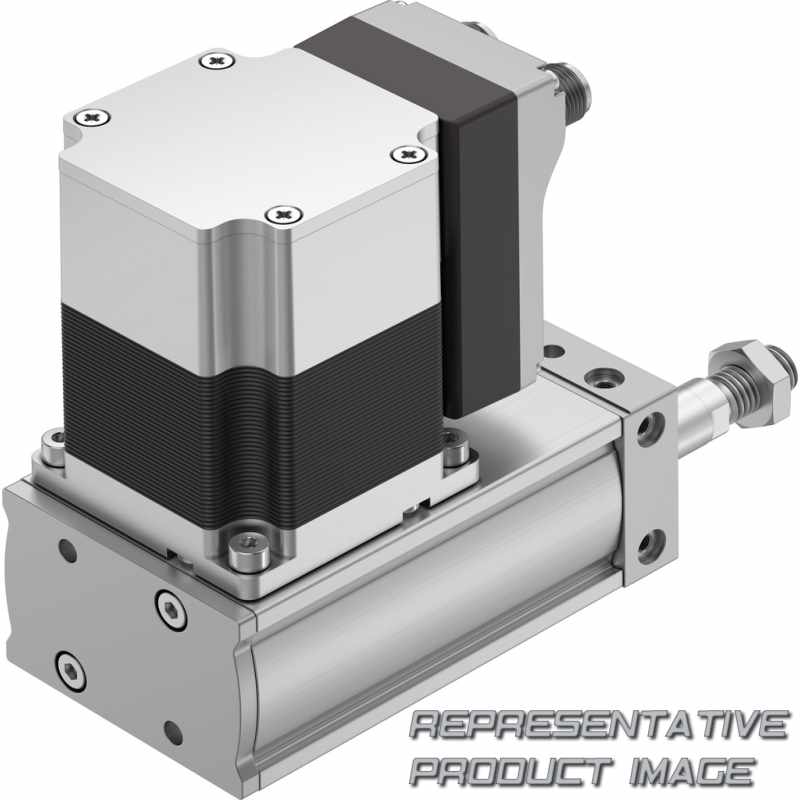

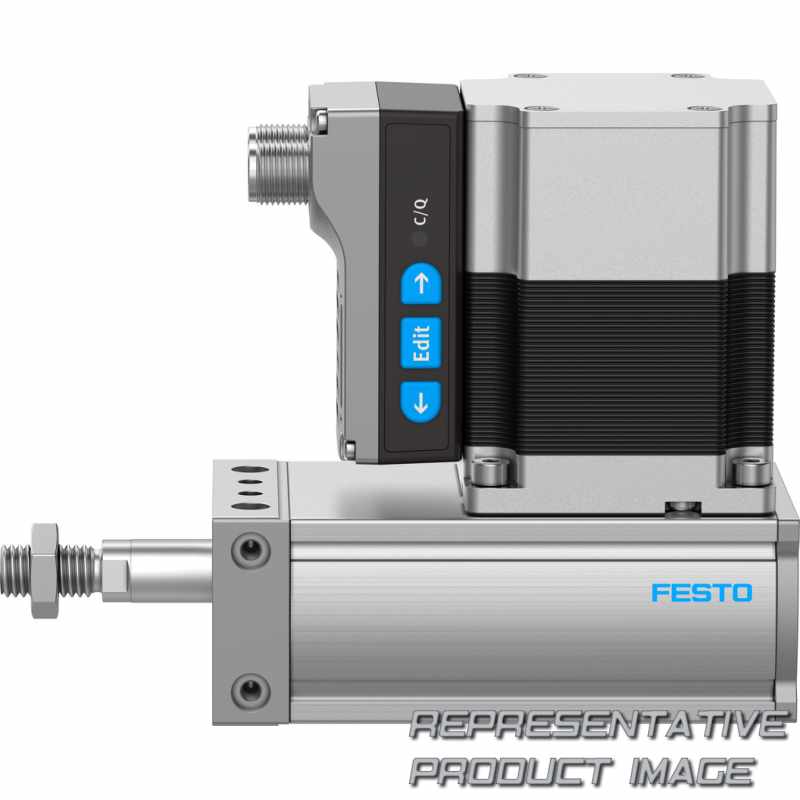

FESTO 8102168 electric cylinder unit

Name: 8102168 FESTO
Brand: FESTO
SKU: 700179-en-gbp
Price: 742.31 GBP
Availability: InStock

EPCE-TB-60-30-FL-MF-ST-M-H1-PLK-AA

£742.31

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (EPCE)	Toothed belt
Drive system (TB)	Toothed belt
Size (60)	60
Stroke [mm] (30)	30
Piston rod, front left (FL)	Piston rod with male thread
Piston rod, rear left	None
Piston rod, front right	None
Piston rod, rear right	None

Cover variant (MF)	Multimount, front
Motor type (ST)	Stepper motor ST
Controller (M)	Integrated
Control panel (H1)	Integrated
Bus protocol/activation (PLK)	PNP and IO-Link®
End-position sensing (AA)	With integrated end-position sensing
Cable outlet direction	Standard
Electrical accessories	None

Technical data

Material toothed belt		Polychloroprene with glass fibre
Material housing		Anodised wrought aluminium alloy
Note on materials		RoHS-compliant
Logic interface, plug pattern		00992264
Logic interface, connection technology		M12x1, A-coded according to EN 61076-2-101
IO-Link, connection technology		Plugs
Switching logic for outputs		PNP (positive switching)
IO-Link, Data storage required		500 Byte
IO-Link, Service data IN		32-bit force 32-bit position 32-bit speed
IO-Link, Process data length IN		2 bytes
IO-Link, Process data length OUT		2 bytes
IO-Link, Port class		A
IO-Link, Protocol version		Device V 1.1
Features of logic input		Configurable Not galvanically isolated
Specification logic input		Based on IEC 61131-2, type 1
Number of digital logic outputs 24 V DC		2
Basic weight for 0 mm stroke		1.407 g
Additional moving mass per 10 mm stroke		9,75 g
Moving mass		227 g
Reference value operational performance		300 km
Reference value effective load, vertical		5 kg
Max. feed force Fx		150 N
Max. moment My		1 Nm
Impact energy in end positions		0,016 J
Ambient temperature		0 °C ... 50 °C
Degree of protection		IP40
Storage temperature		-20 °C ... 60 °C
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark
Power supply, number of pins/wires		4
Power supply, connection type		Plugs
Rotor position transducer resolution		16 bit
Nominal current		5,3 A
Max. current consumption		5.300 mA
Insulation protection class		B
Features of digital logic outputs		Configurable Not galvanically isolated
Max. speed		0,6 m/s
Ready status indication		LED
Additional functions		User interface Integrated end-position sensing
Rotor position sensor		Absolute single-turn encoder
Protection against torque/guide		With plain-bearing guide
Toothed-belt stretch		0,375 %
Stroke reserve		0 mm
Size		60
Design		Electric cylinder With toothed belt With integrated drive
Type of motor		Stepper motor
Mounting position		optional

Material piston rod		High-alloy stainless steel
Material cover		Anodised wrought aluminium alloy
Type of mounting		With through-hole Via female thread Via centring sleeve With accessories
Logic interface, number of pins/wires		8
Logic interface, connection type		Plug
Switching logic for inputs		PNP (positive switching)
Max. cable length		15 m outputs 15 m inputs 20 m with IO-Link® operation
IO-Link, Min. cycle time		1 ms
IO-Link, Process data content IN		1-bit (state device) 1-bit (state move) 1-bit (state in) 1-bit (state out)
IO-Link, Process data content OUT		1-bit (move in) 1-bit (move out) 1-bit (quit error)
IO-Link, Number of ports		1
IO-Link, communication mode		COM3 (230.4 kBaud)
IO-Link, SIO-Mode support		Yes
Working range of logic input		24 V
Number of digital logic inputs		2
Additional weight per 10 mm stroke		46 g
Product weight		1.545 g
Moving mass for 0 mm stroke		197 g
Maintenance interval		Life-time lubrication
Feed constant		32 mm/U
Reference value effective load, horizontal		10 kg
Max. moment Mz		1 Nm
Max. moment Mx		0 Nm
Note on ambient temperature		Power must be reduced by 2% per K at ambient temperatures above 30°C.
Protection class		III
Relative air humidity		0 - 90%
LABS (PWIS) conformity		VDMA24364 zone III
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Power supply, connection pattern		00995989
power supply, connection system		M12x1, T-coded according to EN 61076-2-111
Permissible voltage fluctuations		+/- 15%
Parameterisation interface		IO-Link User interface
Nominal voltage DC		24 V
Max. current digital logic outputs		100 mA
Duty cycle		100%
Repetition accuracy		±0.05 mm
Max. acceleration		9 m/s²
Display		LED
Rotor position sensor, encoder measuring principle		Magnetic
Referencing		Positive fixed stop block Negative fixed stop block
Symbol		00997342
Piston rod thread		M10x1.25
Stroke		30 mm
Effective diameter of drive pinion		10,18 mm
Position detection		Motor encoder
Piston-rod end		Male thread
Toothed-belt pitch		2 mm
