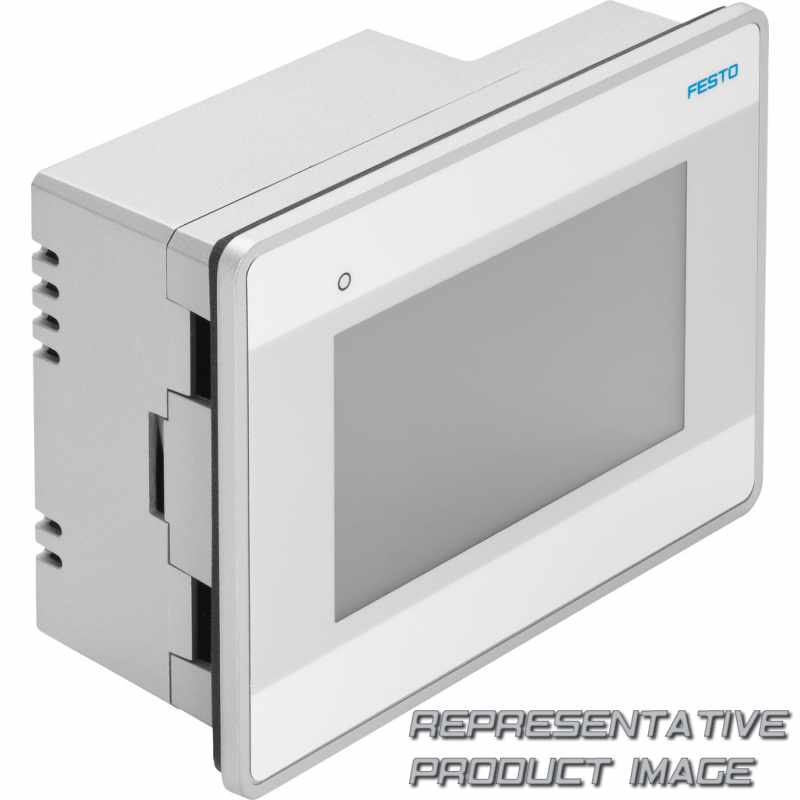

FESTO 574410 operator unit

Name: 574410 FESTO
Brand: FESTO
SKU: 677883-en-gbp
Price: 1112.25 GBP
Availability: SoldOut

CDPX-X-A-W-4

£1,112.25

Limited stock only available on quotation

Specifications

Programming software		Designer Studio
Type of mounting		Front panel mounting
SD card slot		1
PLC interface		Ethernet RS485
Ambient temperature		0 °C ... 50 °C
Relative air humidity		5 - 85 % Non-condensing
CE mark (see declaration of conformity)		To EU EMC Directive
Current consumption at nominal operating voltage		0.4 A
Display resolution		480x272 pixels
Backup battery		Rechargeable lithium battery
Display characteristics		Touchscreen
Number of system LEDs		1
Deviation, real-time clock		130 s/month
Schedulers		30
Java script file size per page		8.000 Byte
Events per event buffer		2.05
Parameter sets for a recipe		32
Curves per trend widget		5
Clients with simultaneous access		4
Projects of any type on one page		2
Tags		10
Sequence memory		32.000 Byte
Real-time clock		Yes
Length		147 mm
Mounting depth		56 mm

Note on materials		RoHS-compliant
Ethernet interface		RJ45 10/100 MBd
USB interface		yes
Product weight		1.000 g
Degree of protection		IP65 at the front following installation into control panel, IP20 at the back
Storage temperature		-20 °C ... 70 °C
Approval		C-Tick c UL us listed (OL)
Nominal operating voltage DC		24 V
Operational voltage range DC		18 V ... 30 V
Display size		4.3"
Display		Colour TFT
Number of colours		64 k
Supported PLC protocol		CoDeSys 2.3 CoDeSys 3.X Modbus RTU client Modbus RTU server Modbus TCP client ModbusTCP server
Size of project on disk		30
Alarms		2
Event buffer		4
Recipes		32
Trend buffer		30
Users		50
Widgets		2
Pages		1
Event lists		2.05
Max. front panel thickness		4 mm
Height		107 mm
