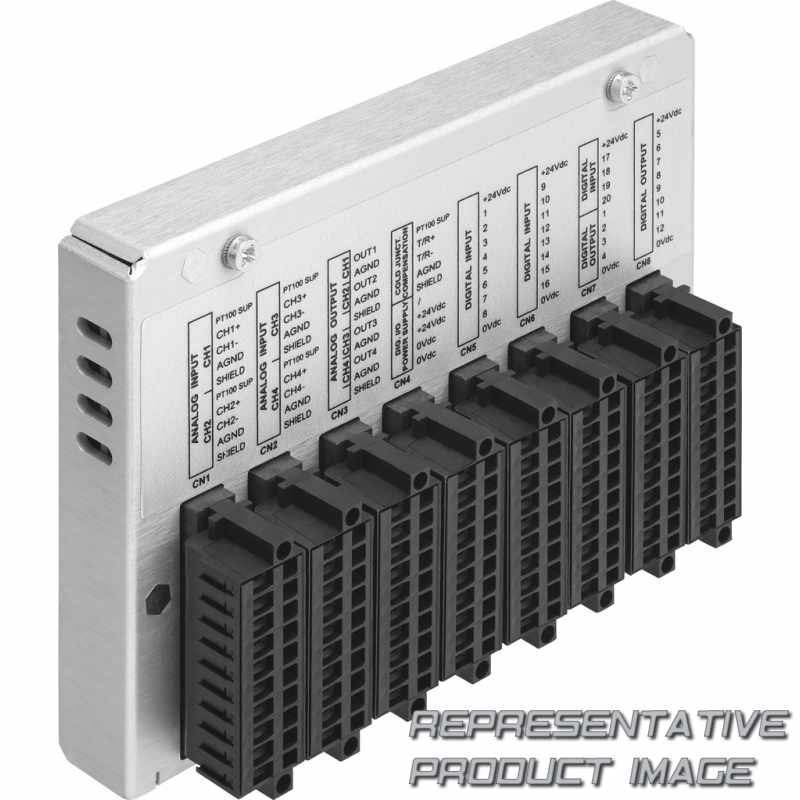

FESTO 575300 input/output module

Name: 575300 FESTO
Brand: FESTO
SKU: 674019-en-gbp
Price: 1309.43 GBP
Availability: InStock

CDPX-EA-V1

£1,309.43

1 pcs. with 1 to 3 days delivery to United States

Specifications

Analogue outputs, linearity error at 25°C		± 0.2%
Analogue outputs, max. load impedance		470 Ohm
Analogue outputs, number		4
Digital outputs, short circuit current rating		yes
Digital outputs, output current		0.5 A
Digital outputs, number		12
Analogue inputs, linearity error at 25 °C		0.1% FS
digital input, signal range		0 - 10 V 0 - 20 mA 8 single-ended/4 differential PT 100 ± 10 V
Analogue inputs, number		4
Digital inputs, nominal value for FALSE		0 V
Digital inputs, input voltage/current		24 V DC
Digital inputs, incremental encoder connection		2
Digital input, number		20
Product weight		230 g
Degree of protection		IP20
Storage temperature		-20 °C ... 70 °C
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		C-Tick c UL us listed (OL)
Height		89 mm

digital output, signal range		± 10 V
Analogue outputs, resolution		12 bit
Digital outputs, overload protection		yes
Digital outputs, electrical isolation		yes
Digital outputs, output voltage		12 - 30 V DC
Analogue inputs, input resistance		47 Ohm
Analogue inputs, absolute accuracy at 25°C		0.1 %
Analogue inputs, resolution		12 bit
Digital inputs, electrical isolation		yes
Digital inputs, nominal value for TRUE		12 - 30 V DC
Digital inputs, input signal delay		0.1 ms 3 ms 10 ms 20 ms
Digital inputs, high-speed counter inputs		2
Note on materials		RoHS-compliant
Ambient temperature		0 °C ... 50 °C
Relative air humidity		5 - 85 % Non-condensing
LABS (PWIS) conformity		VDMA24364 zone III
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Length		125 mm
Mounting depth		34 mm
