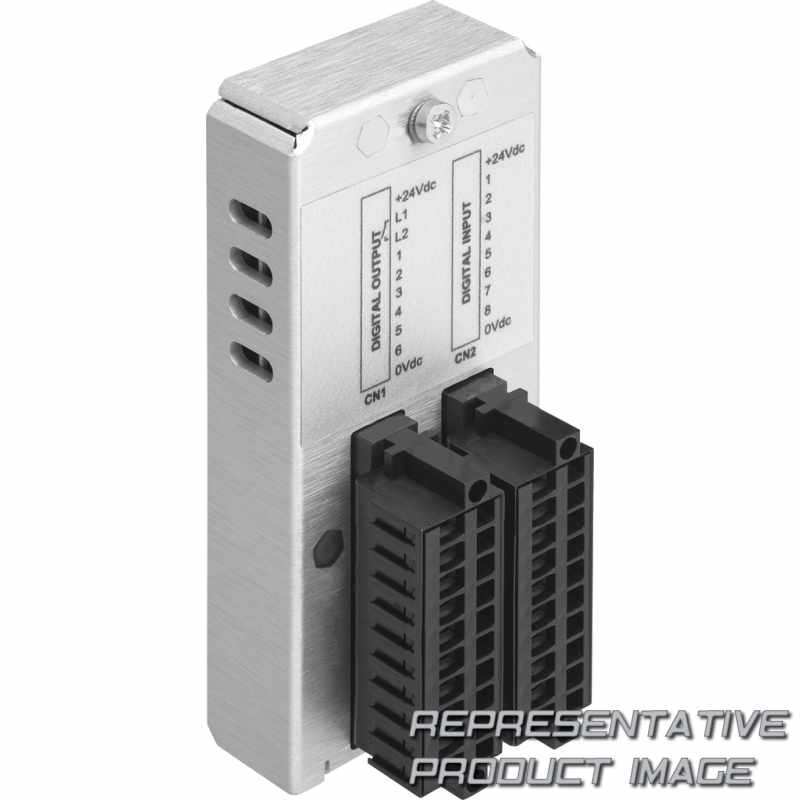

FESTO 8023321 input/output module

Name: 8023321 FESTO
Brand: FESTO
SKU: 681500-en-gbp
Price: 604.37 GBP
Availability: InStock

CDPX-EA-V2

£604.37

1 pcs. with 1 to 3 days delivery to United States

Specifications

Digital outputs, overload protection		yes
Digital outputs, electrical isolation		yes
Digital outputs, output voltage		12 - 30 V DC
Digital outputs, number		7
Digital inputs, nominal value for FALSE		0 V
Digital inputs, input voltage/current		24 V DC
Digital input, number		8
Product weight		80 g
Degree of protection		IP20
Storage temperature		-20 °C ... 70 °C
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		C-Tick c UL us listed (OL)
Height		89 mm

Digital outputs, short circuit current rating		yes
Digital outputs, output current		0.5 A
Digital outputs, contact		1 relay
Digital inputs, electrical isolation		yes
Digital inputs, nominal value for TRUE		12 - 30 V DC
Digital inputs, input signal delay		0.1 ms 3 ms 10 ms 20 ms
Note on materials		RoHS-compliant
Ambient temperature		0 °C ... 50 °C
Relative air humidity		5 - 85 % Non-condensing
LABS (PWIS) conformity		VDMA24364 zone III
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Length		41 mm
Mounting depth		34 mm
