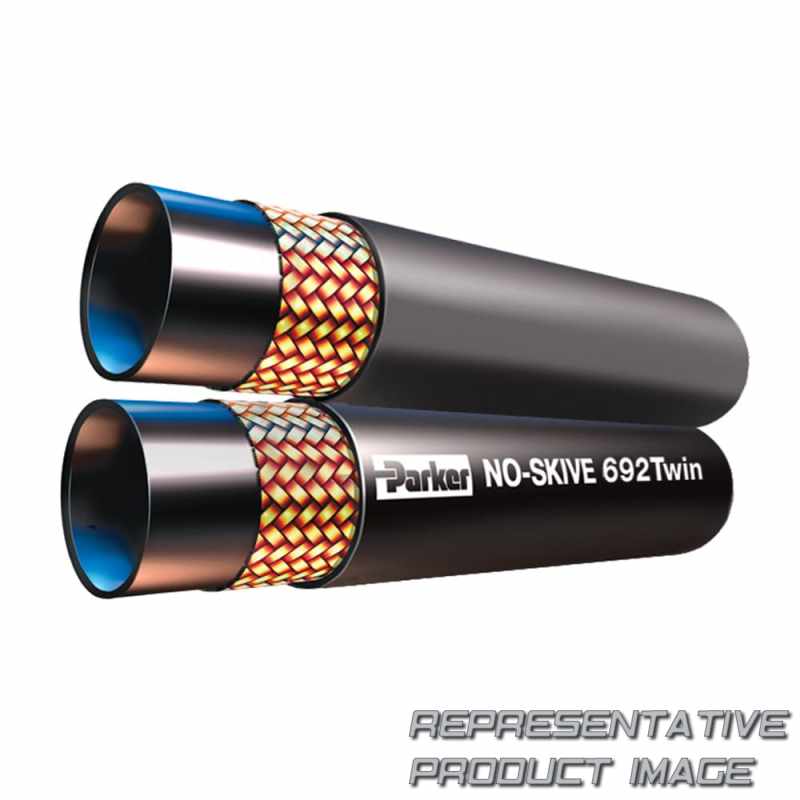

| hose type | twin line | ||
| hose cover material | synthetic rubber | ||
| hose outside diameter | 1.016 inch, 25.8 mm | ||
| cover color | black | ||
| product type | constant working pressure hose, hydraulic hose | ||
| materials of construction | rubber | ||
| product style | no-skive compact | ||
| media | hydraulic fluids, air, petroleum & water-glycol based fluids, lubricating oils, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, lubricants, industrial air, mineral hydraulic oil, water | ||
| division | polymer hose division europe | ||
| maximum operating pressure | 21, 3045 | ||
| hose inside diameter | 6.4 mm, 1/4 inch | ||
| maximum operating temperature | 100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158) | ||
| specifications met | parker specifications | ||
| Weight | 0.34 kg, 0.23 lb/ft, 0.18 to 1.3 kg |
| hose i.d. (size) | -4 | ||
| hose reinforcement material | 1 or 2 high tensile steel wire braids | ||
| industry | industrial manufacturing equipment | ||
| hose inner tube material | nitrile nbr, one or two high-tensile steel wire braids | ||
| technology | fluid & gas handling | ||
| design factor | 4:1 | ||
| minimum bend radius | 1.575 inch, 40 mm | ||
| Brand | parker | ||
| Application | general small bending radii hydraulic applications, ideal for the sheave or reel applications | ||
| Burst pressure | 84 mpa, 12180 psi | ||
| compatible fitting | 46 series | ||
| minimum operating temperature | -40 °c | ||
| cover material | synthetic rubber |
