692PU-6-6 Parker Hannifin

PARKER 692PU-6-6

Name: 692PU-6-6 PARKER
Brand: PARKER
SKU: 573981-en-gbp
Price: 41.85 GBP
Availability: InStock

£41.85 /m ~~£83.70~~ /m -50%

available with 3 to 7 days delivery to United States

Specifications

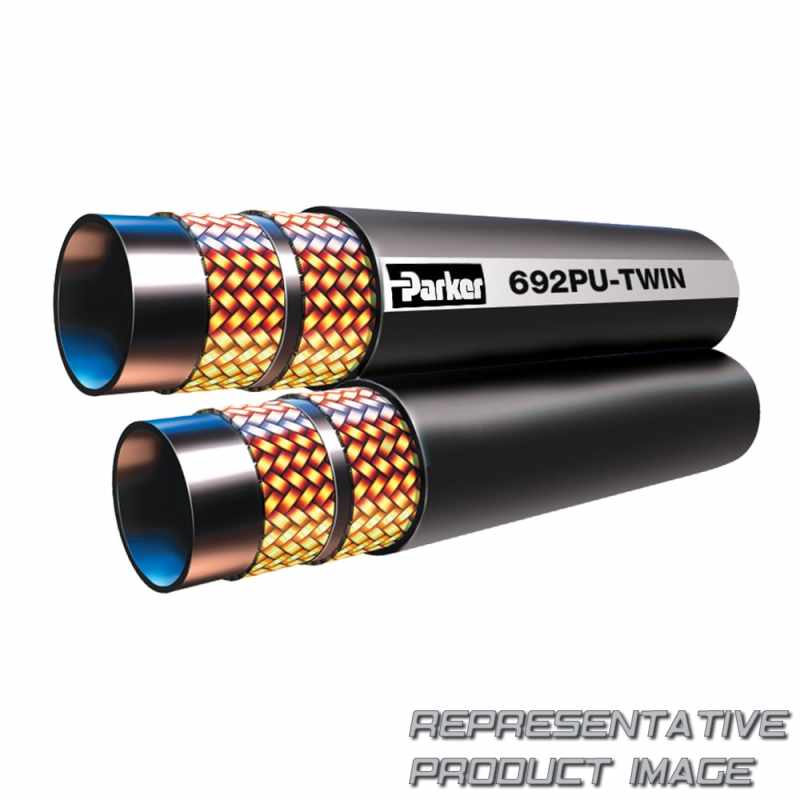

Parker No-Skive Compact hydraulic hose 692 has been designed for general small bending raddi applications with a working pressure up to 21,0 MPa. The hose range is compatible with No-Skive fittings in steel and stainless steel in series 46 and 48.

max. pressure	3045, 21

Weight	500g

Technical data

hose type		twin line
hose i.d. (size)		-6
hose outside diameter		1.228 inch, 31.2 mm
cover color		black
minimum operating temperature		-49 °f, -45 °c
technology		fluid & gas handling
materials of construction		rubber
product style		no-skive compact
media		hydraulic fluids on a mineral-oil basis, water-glycol & lubricating oils, air & water, hydraulic fluids, air, coolants i.e. glycol, lubricants, industrial air, mineral hydraulic oil, water
division		polymer hose division europe
maximum operating pressure		3045, 21
hose inside diameter		9.5 mm, 3/8 inch
maximum operating temperature		100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158)
Weight		0.34 lb/ft, 0.50 kg/m

hose cover material		premium-quality polyurethane
hose reinforcement material		1 or 2 high tensile steel wire braids
industry		industrial manufacturing equipment
hose inner tube material		nitrile nbr, one or two high-tensile steel wire braids
product type		constant working pressure hose, hydraulic hose
cover material		premium-quality polyurethane
design factor		4:1
minimum bend radius		1.575 inch, 40 mm
Brand		parker
Application		material handling industry, where tight bend radii, flexibility, ozone, abrasion and shock resistance are needed and required ideal for over-the-sheave or reel applications
Burst pressure		84 mpa, 12180 psi
compatible fitting		46 series
specifications met		parker specifications (constant working pressure), parker specifications – constant working pressure
