801PLUS-8-GRN-RL Parker Hannifin

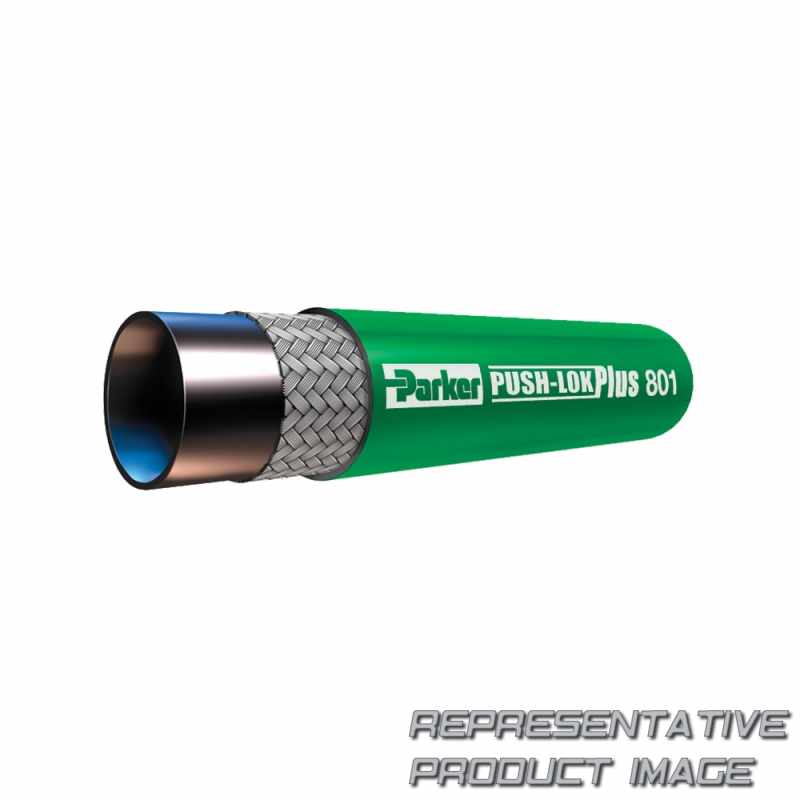

PARKER 801PLUS-8-GRN-RL

Name: 801PLUS-8-GRN-RL PARKER
Brand: PARKER
SKU: 573889-en-gbp
Price: 36.47 GBP
Availability: InStock

£36.47 /m

22 m with 1 to 3 days delivery to United States

Specifications

Parker's Push-Lok 801PLUS is a very flexible all-rounder with Nitrile (NBR) inner tube and a working pressure of up to 2.4 MPa, available in six different colors and compatible with Push-Lok fittings in series 82 in steel, stainless steel and brass.

max. pressure	21 bar, 2.1 mpa, 300 psi

Weight	270g

Technical data

Color		green
hose reinforcement material		high tensile fibre braid
hose outside diameter		0.764 inch, 19.4 mm
cover color		green
Brand		parker
product type		push-lok and push-on hoses
materials of construction		rubber
vacuum pressure rating		0.95 bar, 28.05 inch-hg, 712.56 mm-hg
product style		push-lok plus
Weight		0.18 lb/ft, 0.27 kg/m
hose inside diameter		1/2 inch, 12.7 mm
maximum operating temperature		212 °f (water: 185, air: 158), 100 °c (water: 85 , air: 70)
cover material		high performance synthetic rubber in different colours

hose i.d. (size)		-8
specifications met		parker specifications
industry		general industrial, marine, transportation
hose inner tube material		nitrile nbr
maximum operating pressure		21 bar, 2.1 mpa, 300 psi
technology		fluid & gas handling
design factor		4:1
division		polymer hose division europe
minimum bend radius		4.921 inch, 125 mm
media		air, water-glycol-emulsions, mineral based hydraulic, lubricating oils, coolants i.e. water-glycol, industrial air, lubricants, mineral hydraulic oil, water
compatible fitting		82 series
minimum operating temperature		-40 °c
Application		all markets: for low pressure applications paper and pulp: for water/air applications
