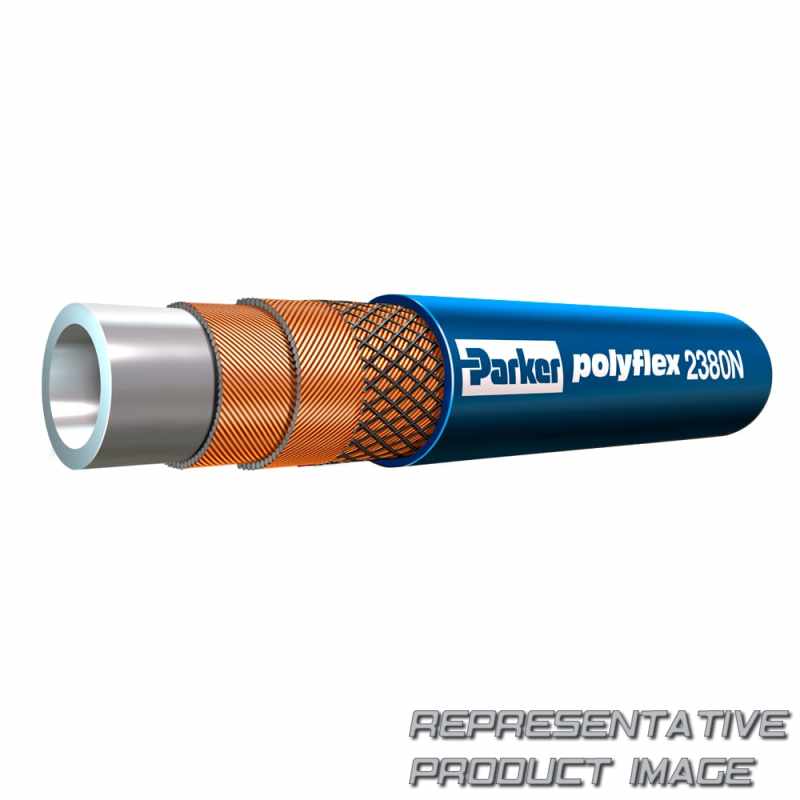

| hose type | high pressure | ||
| hose reinforcement material | 2 spiral layers and two open spiral layers of high tensile steel wire | ||
| hose inner tube material | polyamide 12 | ||
| Application | oil & gas hydraulic systems, portable hydraulic tools | ||
| compatible fitting | 8x series | ||
| maximum operating temperature | 212 °f, 100 °c | ||
| hose outside diameter | 0.520 inch, 13.3 mm | ||
| design factor | 4:1 | ||
| hose i.d. (inch) | 1/4 | ||
| cover color | blue |
| Size | -4 | ||
| cover material | polyurethane | ||
| Weight | 0.18 lb/ft, 0.27 kg/m | ||
| media | hydraulic fluids | ||
| minimum bend radius | 2-3/4 inch, 70 mm | ||
| maximum operating pressure | 10150 psi, 70 mpa, 700 bar | ||
| hose inside diameter | 1/4 inch, 6.4 mm | ||
| minimum operating temperature | -40 °f, -40 °c | ||
| maximum working pressure (psi) | 10, 150 |
