| activation | electrically | ||

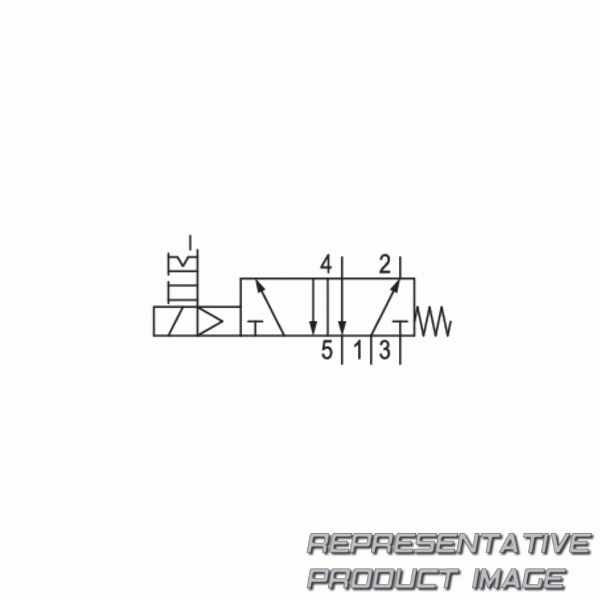

| switching principle | 5/2 | ||
| working pressure min. | 3 bar | ||
| operational voltage ac at 50 hz | 230 v | ||
| Manual override | with detent, without detent | ||
| electrical connection size | en 175301-803, form a | ||
| pilot | internal | ||
| pilot valve width | 30x22 mm cnomo | ||
| blocking principle | single base plate principle | ||
| return | with spring return | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| holding power ac 50 hz | 4.8 va | ||
| flow conductance c | 5.2 l/(s*bar) |
| nominal flow qn | 1400 l/min | ||
| compressed air connection output | base plate iso 5599-1 | ||
| working pressure max | 10 bar | ||
| voltage tolerance ac 50 hz | -10% / +10% | ||
| electrical connection type | plug | ||
| Sealing principle | soft seal | ||
| Standards | iso 5599-1 | ||
| valve type | spool valve | ||
| connection type | plate connection | ||
| compressed air connection input | base plate iso 5599-1 | ||
| compressed air connection pilot exhaust | m5 | ||
| switch-on power ac 50 hz | 7 va |
