| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| can be assembled into blocks | can be assembled into blocks | ||
| return | with spring return | ||
| valve type | poppet valve | ||
| Sealing principle | soft seal | ||
| electrical connection type | plug | ||
| voltage tolerance ac 60 hz | -10% / +15% | ||
| operational voltage ac at 60 hz | 230 v | ||
| working pressure max | 8 bar | ||
| compressed air connection output | Ø 8x1 | ||

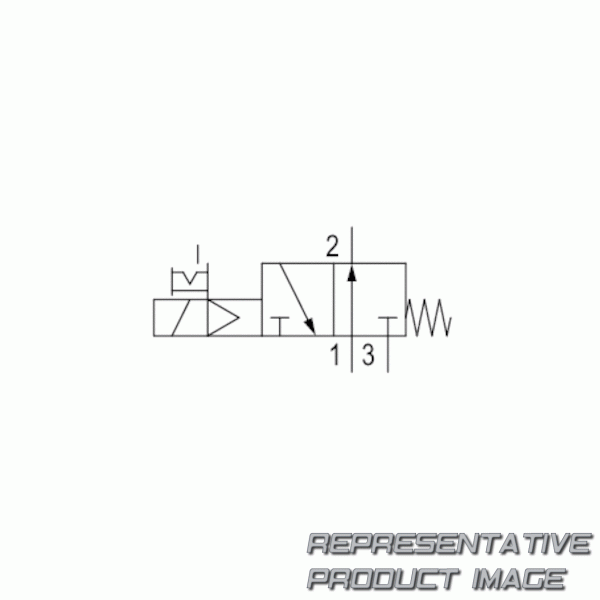

| switching principle | 3/2 | ||
| activation | electrically |
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| blocking principle | stacking valve | ||
| connection type | pipe connection | ||
| pilot | internal | ||
| electrical connection size | iso 15217, form c | ||
| Manual override | with detent | ||
| voltage tolerance ac 50 hz | -10% / +15% | ||
| operational voltage ac at 50 hz | 230 v | ||
| working pressure min. | 2 bar | ||
| Version | no | ||
| nominal flow qn | 600 l/min |
