FESTO 163781 solenoid valve

Name: 163781 FESTO
Brand: FESTO
SKU: 755857-en-gbp
Price: 207.76 GBP
Availability: InStock

CPE18-M2H-3GLS-QS-10

£207.76

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (18)	18 mm
Nominal operating voltage (M2)	110 V AC
Electrical connection (H)	Plug pattern ZC

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 2		QS-10
Pilot air port 12		M5
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		3.100 µs
Duty cycle		100%
Switching time off		18 ms
lap		Positive overlap

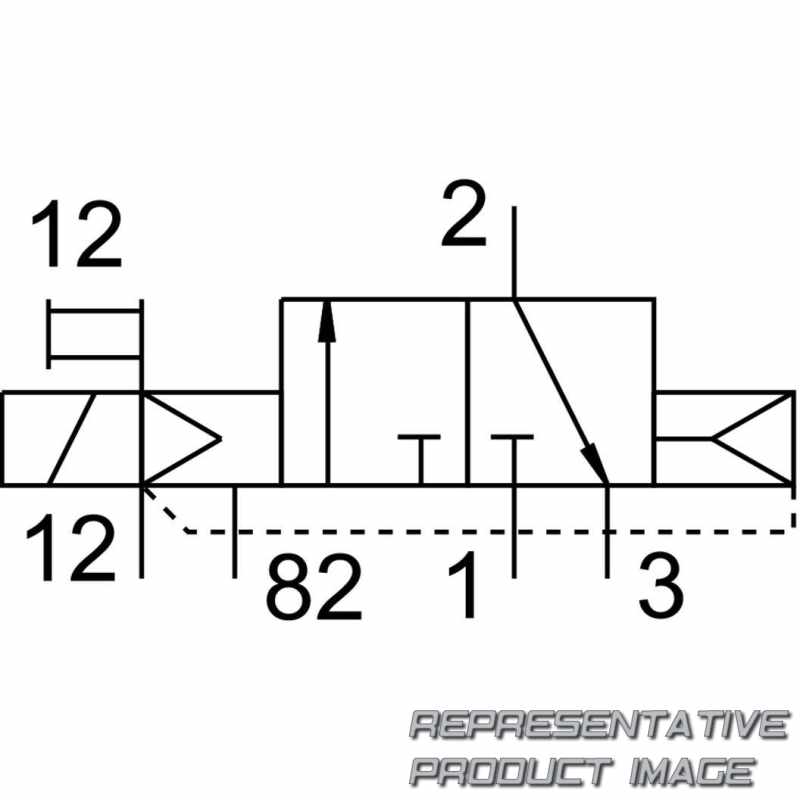

Symbol		00991405
Pilot air supply		External
Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Degree of protection		IP65 With plug socket To IEC 60529
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		110V AC
Standard nominal flow rate		1.000 l/min
Type of actuation		Electric

Material seals		NBR
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		QS-10
Pilot exhaust port 82		M5
Electrical connection		Type C
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA
Max. positive test pulse with 0 signal		3.300 µs
Switching time on		28 ms
Pilot pressure		2,5 bar ... 10 bar
Valve position code		Inscription label holder
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Nominal size		8 mm
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Maritime classification		See certificate
Type of reset		Pneumatic spring
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		QS-10
Construction width		18 mm
Valve function		3/2-way, closed, monostable
