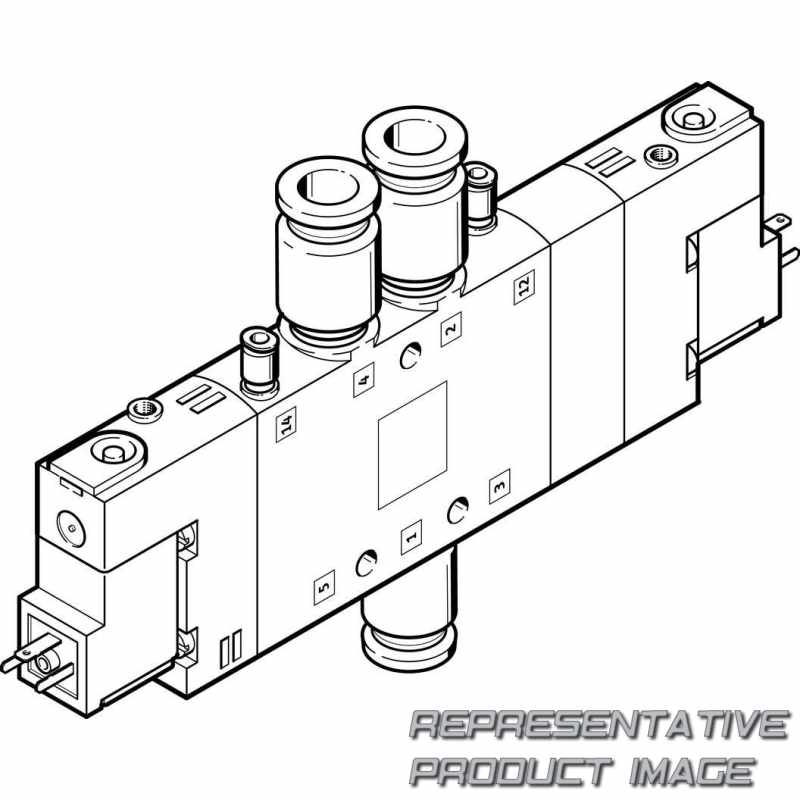

FESTO 170254 solenoid valve

Name: 170254 FESTO
Brand: FESTO
SKU: 756109-en-gbp
Price: 261.18 GBP
Availability: InStock

CPE18-M1H-5/3GS-QS-8

£261.18 ~~£342~~ -23%

available with 3 to 7 days delivery to United States

Specifications

Series (CPE)	Solenoid valve, Compact Performance
Width (18)	18 mm
Nominal operating voltage (M1)	24 V DC
Electrical connection (H)	Plug pattern ZC

Valve function (5/3G)	5/3-way valve, mid-position closed
Pilot air (S)	External
Pneumatic connection (QS-8)	Push-in connector 8 mm
Generation	None

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		QS-8
Pneumatic connection, port 2		QS-8
Pilot air port 14		M5
Pilot exhaust port 84		M5
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Max. negative test pulse with 1 signal		3.100 µs
Duty cycle		100%
Switching time off		38 ms
lap		Positive overlap
Symbol		00991020
Pilot air supply		External
Manual override		Detenting via accessory Non-detenting
Sealing principle		Soft
Nominal size		8 mm
Maritime classification		See certificate
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		QS-8
Construction width		18 mm
Valve function		5/3 closed

Material seals		NBR
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		QS-8
Pilot air port 12		M5
Pilot exhaust port 82		M5
Electrical connection		Type C
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.5 W
Max. positive test pulse with 0 signal		3.300 µs
Switching time on		20 ms
Pilot pressure		2,5 bar ... 10 bar
Valve position code		Inscription label holder
Flow direction		Reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With plug socket To IEC 60529
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		850 l/min
Type of actuation		Electric
