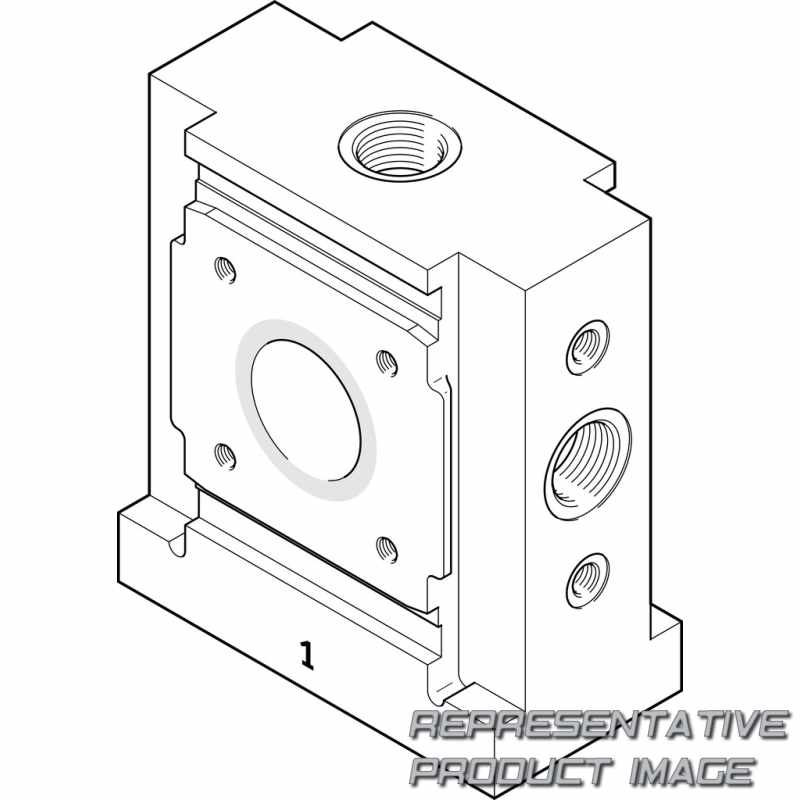

FESTO 1609073 branching module

Name: 1609073 FESTO
Brand: FESTO
SKU: 756466-en-gbp
Price: 1130.11 GBP
Availability: SoldOut

PMBL-186-HP3-H

£1,130.11 ~~£1,789.34~~ -36%

Limited stock only available on quotation

Specifications

Series (PMBL)	Branching module
Size (186)	186 mm
Pressure application range (HP3)	Up to 50 bar

Additional function	None
Width (H)	Half width

Material housing		Wrought aluminium alloy
Note on materials		RoHS-compliant
Pneumatic connection, port 3		G1
Media temperature		5 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
CE marking (see declaration of conformity)		to UK Pressure Equipment Regulations
Operating pressure		0 bar ... 50 bar
Design		Branching module
Series		L

Material seals		NBR
Pneumatic connection, port 4		G1
Ambient temperature		5 °C ... 60 °C
Suitable for use with food		See supplementary material information
LABS (PWIS) conformity		VDMA24364 zone III
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-]
CE mark (see declaration of conformity)		In accordance with EU Pressure Equipment Directive

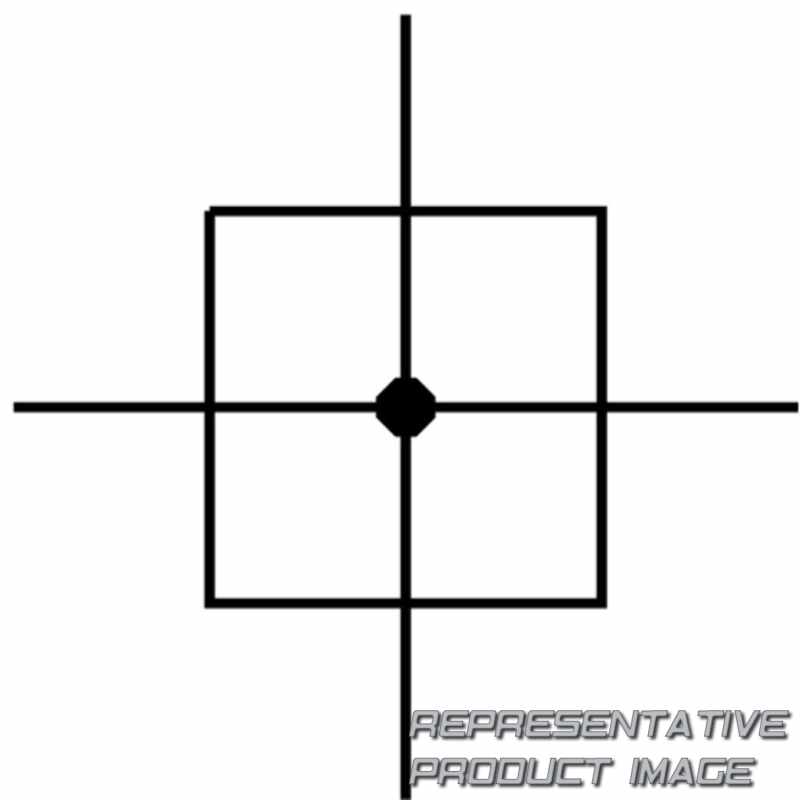

Symbol		00991510
Mounting position		optional
Nominal size DN		54
