FESTO 2663892 branching module

Name: 2663892 FESTO
Brand: FESTO
SKU: 756099-en-gbp
Price: 2299.7 GBP
Availability: SoldOut

PMBL-90-HP3-E

£2,299.70 ~~£3,832.83~~ -39%

Limited stock only available on quotation

Specifications

Series (PMBL)	Branching module
Size (90)	90 mm
Pressure application range (HP3)	Up to 50 bar

Additional function (E)	Pneumatically actuated exhaust
Width	Standard

Material housing		Wrought aluminium alloy
Note on materials		RoHS-compliant
Ambient temperature		5 °C ... 60 °C
Suitable for use with food		See supplementary material information
LABS (PWIS) conformity		VDMA24364 zone III
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
CE mark (see declaration of conformity)		In accordance with EU Pressure Equipment Directive
Operating pressure		0 bar ... 50 bar
Design		Branching module
Series		L
Size		90

Material seals		NBR PE
Product weight		2.600 g
Media temperature		5 °C ... 60 °C
Storage temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
CE marking (see declaration of conformity)		to UK Pressure Equipment Regulations
Pilot pressure		0 bar ... 50 bar

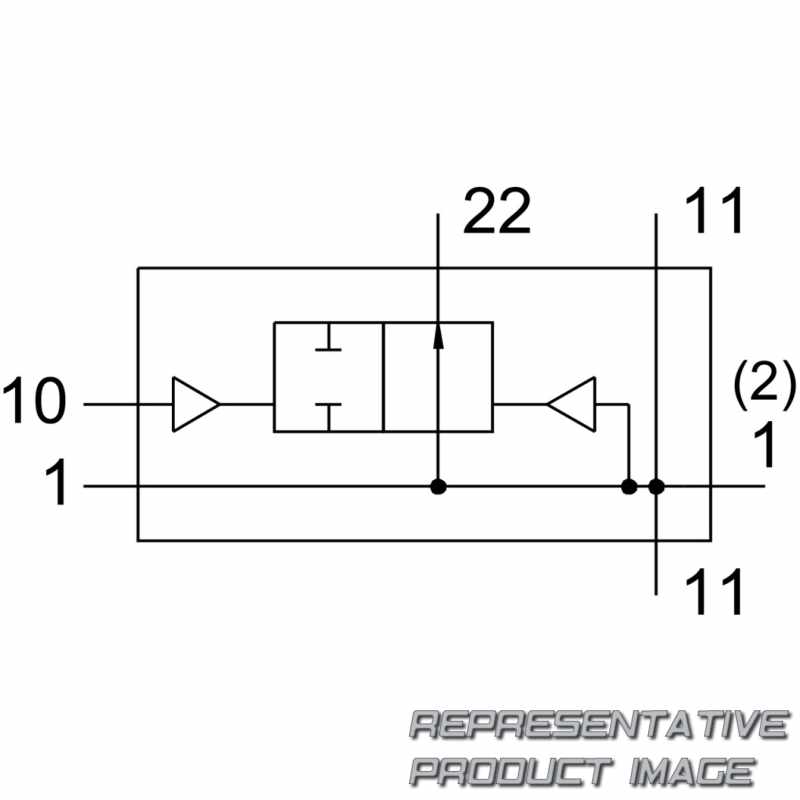

Symbol		00995259
Mounting position		optional
Nominal size DN		36
