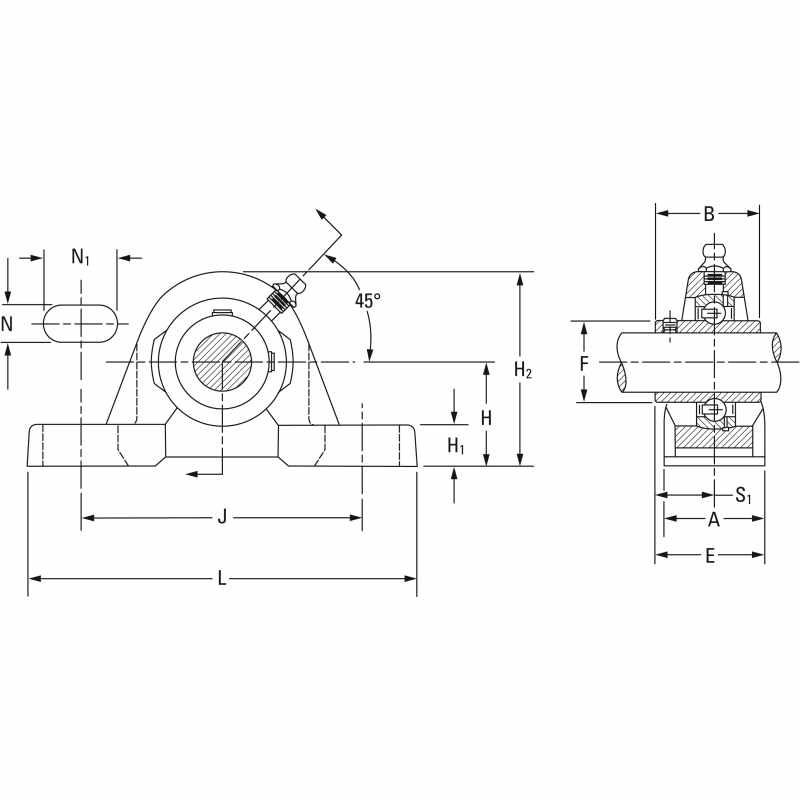

| Base to Center Height H | 36.51 | mm | |
| Total Width A | 37.30 | mm | |
| Bolt Hole Width N | 11.10 | mm | |
| Foot Height H1 | 15.10 | mm | |
| Inside Ring Width B | 34.85 | mm | |
| Dimension F | 33.83 | mm |
| Total Length L | 139.70 | mm | |
| Bolt Hole Spacing J | 104.80 | mm | |
| Bolt Hole Length N1 | 20.60 | mm | |
| Total Height H2 | 73 | mm | |
| Dimension S1 | 20.56 | mm |
| Shaft Size d | 25 | mm | |
| Bearing Number | GYE25KRRB SGT | ||
| Seal Type | Shroud Seal | ||
| Weight | 0.95 | Kg |
| Bearing Type | Ball Bearing | ||
| Series | Industrial | ||
| Housing Construction | Two-Bolt Pillow Block | ||
| Alternate Part Name | YAS25 SGT |
