| UPC | 786689005269 | ||
| product height | 2 in | ||
| certifications | ul listed csa certified iec 60947 en 60947 |
||
| frame size | 45 mm | ||
| coil voltage | 110-120 vac, 50/60 hz | ||

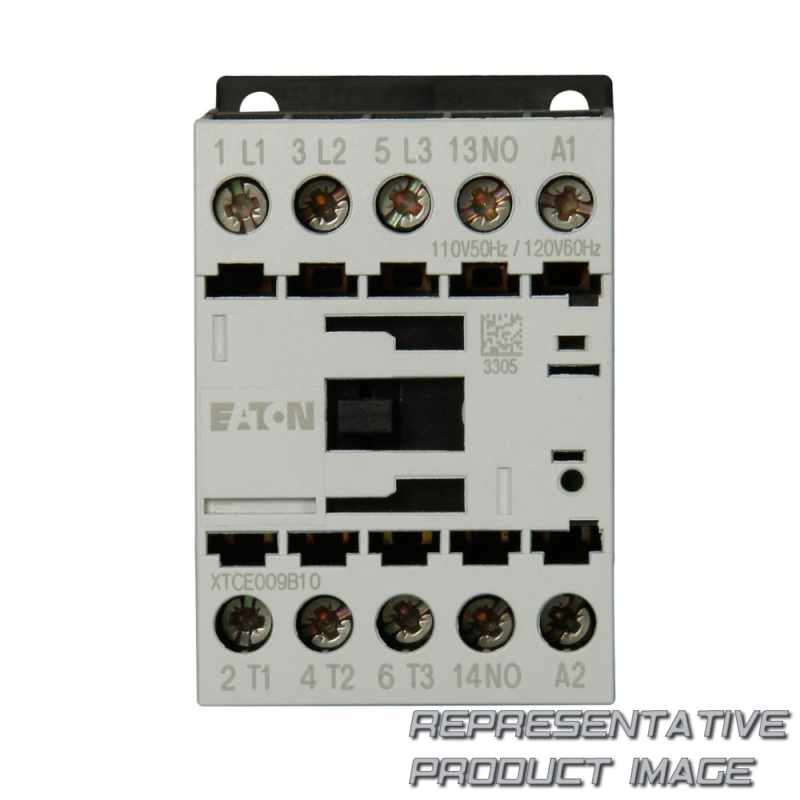

| Type | full voltage non-reversing contactor | ||
| continuous ampere rating | 9 a | ||
| terminals | screw terminals | ||
| amperage rating | 9a |
| ean | 4015082766870 | ||
| compliances | ce marked rohs compliant |
||
| catalog notes | screw terminals (6-65a); 5 mm (80-150a); no lugs (185-2000a) | ||
| contact configuration | 1 no | ||
| Series | xt iec | ||
| hp rating - max | 0.5, 1, 1.25/ 3, 3, 5, 7.5 hp (1/3ph @115,200,230/200,230,460,575 v) | ||
| frequency rating | 50-60 hz | ||
| operation | non-reversing | ||
| number of poles | three-pole |
