| metric tube fittings | gauge 12lxfem g1/4 body | ||
| Material | carbon steel | ||
| pressure (bar) | 400 | ||
| Series | l - light series | ||
| tube od | 12 | ||
| family | metric tube fittings | ||
| l5 | 15.50 | ||
| S2 | 22 | ||
| Thread G | g1/4-19 | ||
| tube o.d. | 12 | ||
| weight kg/100 pcs. | 6.30 | ||
| i | 14.50 |
| end type | npt | ||
| pressure (psi) | 5,801 | ||
| primary system | walpro | ||
| shape | 45 degree | ||

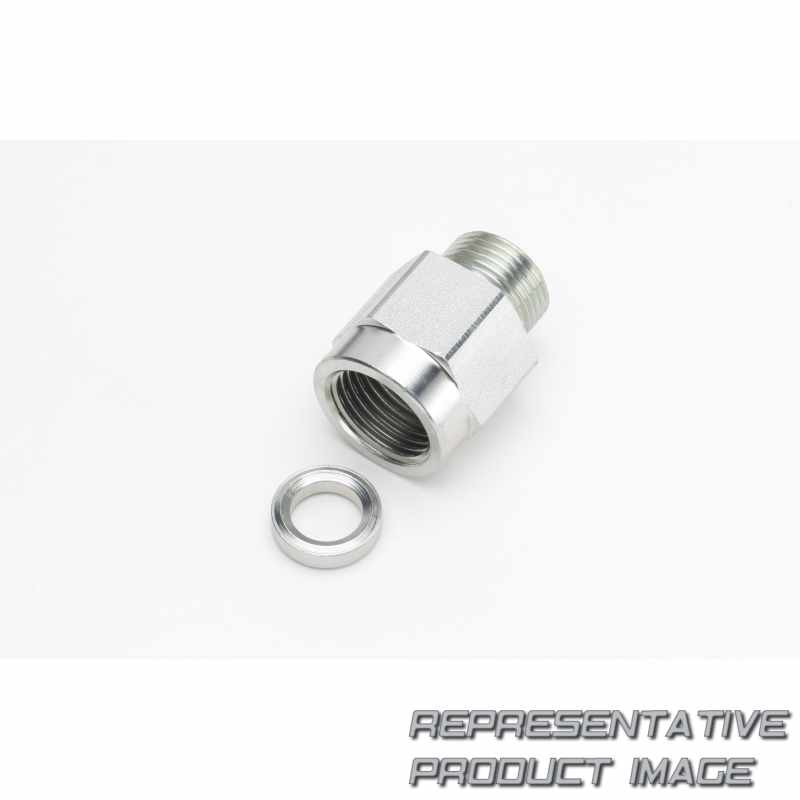

| description | adjustable gauge coupling with sealing ring (body only) | ||
| L2 | 38 | ||
| S1 | 19 | ||
| section in catalog | h | ||
| Thread Type | bsp thread | ||
| Type | mas 12 lr | ||
| H | 4.50 | in | |
| L | 8.50 | mm |
