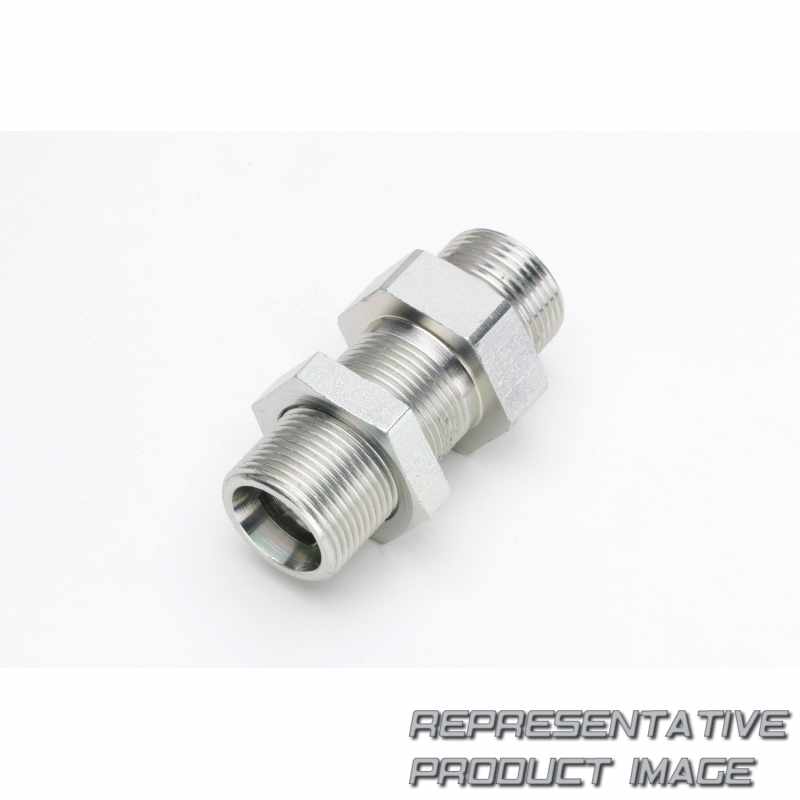

| metric tube fittings | bulkhead 16s body | ||
| Material | carbon steel | ||
| pressure (bar) | 630 | ||
| Series | s - heavy series | ||
| tube od | 16 | ||
| dmax | 16 | ||
| family | metric tube fittings | ||
| l5 | 40 | ||
| m | m24x1.5 | ||
| S2 | 30 | ||
| section in catalog | e | ||
| Type | gss 16 s m. 6kt m | ||
| L1 | 16.50 | mm |
| end type | npt | ||
| pressure (psi) | 9,137 | ||
| primary system | walpro | ||
| shape | 90 degree | ||
| description | bulkhead coupling (body only) | ||
| dmin | 4 | ||
| L3 | 50 | ||
| l6 | 25 | ||
| S1 | 32 | ||
| S3 | 32 | ||
| tube o.d. | 16 | ||
| weight kg/100 pcs. | 17.50 | ||
| L2 | 31.50 |
