| metric tube fittings | egesd 22 lr-wd a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 250 | ||
| Series | l - light series | ||
| tube od | 22 | ||
| family | metric tube fittings | ||
| o-ring | 20.0x2.0 | ||
| S1 | 32 | ||
| section in catalog | k | ||
| Thread Type | bsp thread (parallel) | ||
| Type | egesd 22 lr-wd | ||
| d | 31.90 |
| end type | npt | ||
| pressure (psi) | 3,626 | ||
| primary system | walpro | ||
| shape | 45 degree | ||

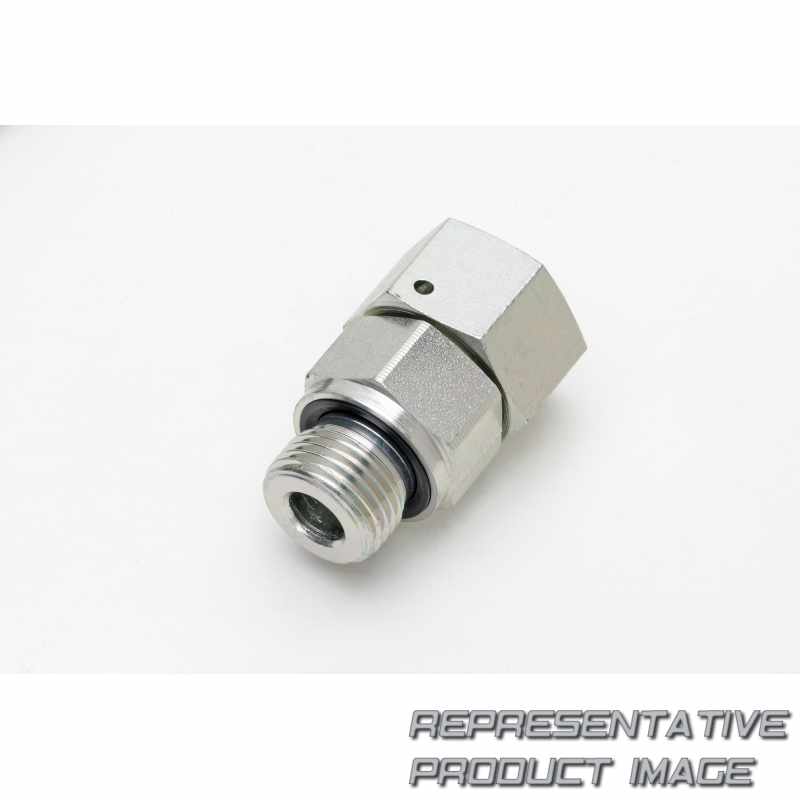

| description | stud standpipe adaptor (body only) | ||
| L1 | 32.50 | mm | |
| o-ring 1 | 20.0x2.0 | ||
| S2 | 36 | ||
| Thread G | g3/4-14 | ||
| tube o.d. | 22 | ||
| weight kg/100 pcs. | 20.20 | ||
| i | 16 |
