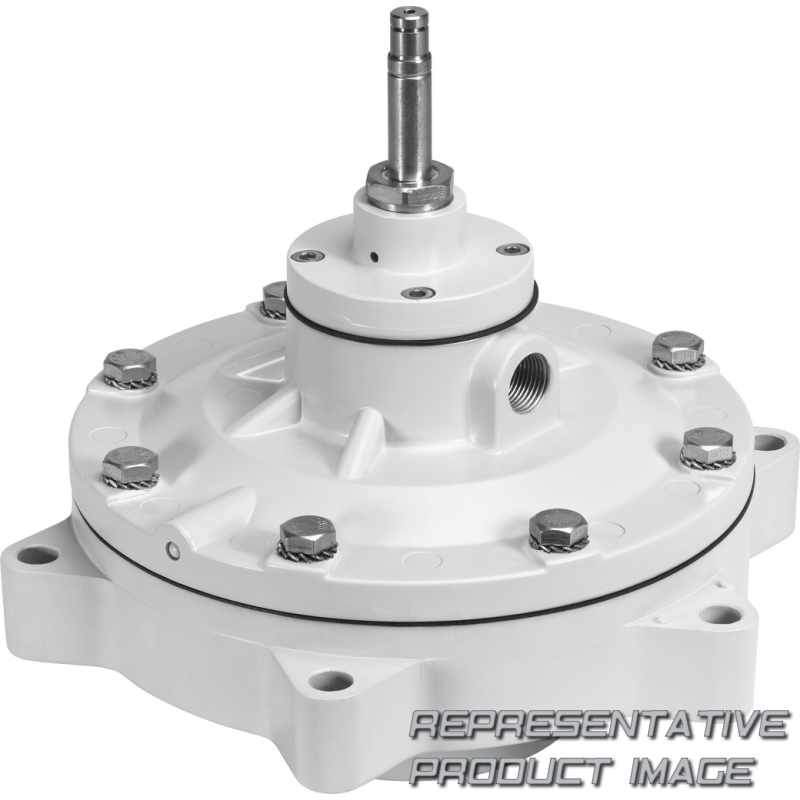

FESTO 1808248 basic valve

Name: 1808248 FESTO
Brand: FESTO
SKU: 673929-en-gbp
Price: 172.95 GBP
Availability: SoldOut

VZWE-F-M22C-M-F600-500-H

£172.95 ~~£281.05~~ -38%

Limited stock only available on quotation

Specifications

Series (VZWE)	Reverse jet pulse valve
Mounting type (F)	Flange version
Valve function (M22C)	2/2-way valve, normally closed
Reset method for monostable/single solenoid valves (M)	Mechanical spring

Process valve connection (F600)	Flange 60 mm
Nominal width mm (500)	50 mm
Design suffix (H)	Standard version with NBR seals and IP65

Design		Straight design with flange Diaphragm valve
Sealing principle		Soft
Type of mounting		Screw-clamped Via thread
Process valve port 2		Flange Ø 145.5 mm
Valve function		2/2-way, closed, monostable
Flow direction		Non-reversible
Pressure difference		0,35 bar
Type of piloting		Pilot actuated
Medium pressure		0,35 bar ... 8 bar
Ambient temperature		-20 °C ... 60 °C
Switching time on		≤ 30 ms
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Material number housing		EN AC-47100D
Material screws		High-alloy stainless steel
Material plunger tube		High-alloy steel
Product weight		3.300 g
Corrosion resistance class CRC		3 - high corrosion stress

Type of actuation		Electric
Mounting position		optional
Connection, process valve 1		Flange diameter 60 mm
Nominal size		50 mm
Manual override		None
Medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Type of reset		Mechanical spring
Symbol		00995358
Note on operating and pilot medium		Lubricated operation not possible
Flow rate Kv		78 m³/h
Switching time off		≤ 100 ms
Material housing		Die-cast aluminium
Material seals		NBR
Material number screw		1.43
Material membrane		NBR-PA
Degree of protection		IP65
