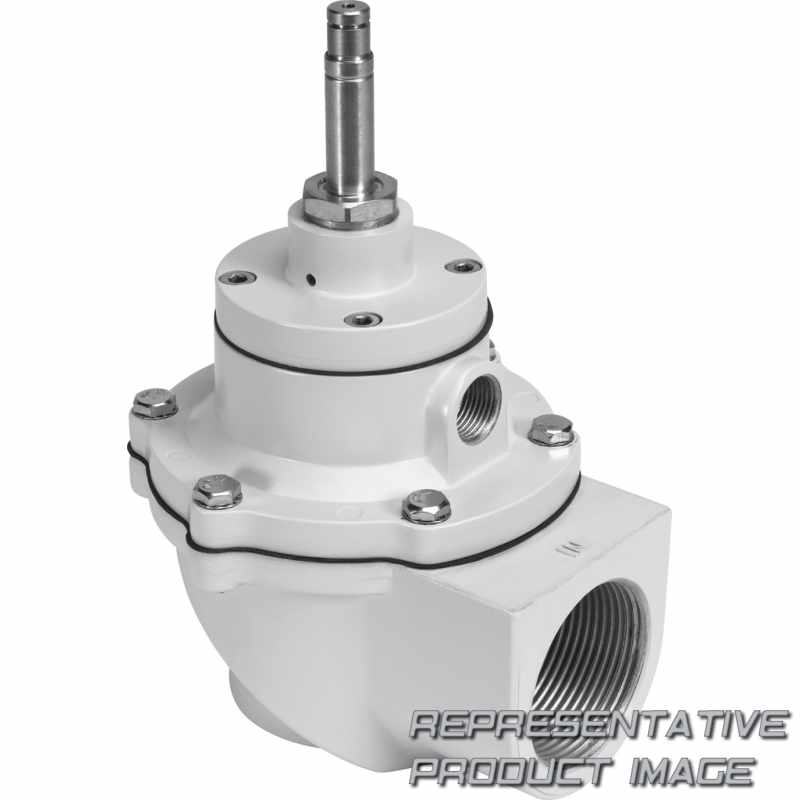

FESTO 1239565 basic valve

Name: 1239565 FESTO
Brand: FESTO
SKU: 667726-en-gbp
Price: 157.79 GBP
Availability: SoldOut

VZWE-E-M22C-M-G112-400-H

£157.79 Limited stock only available on quotation

Specifications

Series (VZWE)	Reverse jet pulse valve
Mounting type (E)	Straight version
Valve function (M22C)	2/2-way valve, normally closed
Reset method for monostable/single solenoid valves (M)	Mechanical spring

Process valve connection (G112)	G1 1/2 thread
Nominal width mm (400)	40 mm
Design suffix (H)	Standard version with NBR seals and IP65

Max. tightening torque for connecting thread		240 Nm
Degree of protection		IP65
Material membrane		NBR-PA
Material number screw		1.43
Material seals		NBR
Material housing		Die-cast aluminium
Switching time off		≤ 100 ms
Flow rate Kv		48 m³/h
Note on operating and pilot medium		Lubricated operation not possible
Symbol		00995358
Type of reset		Mechanical spring
Medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Manual override		None
Nominal size		40 mm
Connection, process valve 1		G1 1/2
Mounting position		optional
Type of actuation		Electric

Corrosion resistance class CRC		3 - high corrosion stress
Product weight		1.300 g
Material plunger tube		High-alloy steel
Material screws		High-alloy stainless steel
Material number housing		EN AC-47100D
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Switching time on		≤ 30 ms
Ambient temperature		-20 °C ... 60 °C
Medium pressure		0,35 bar ... 8 bar
Type of piloting		Pilot actuated
Pressure difference		0,35 bar
Flow direction		Non-reversible
Valve function		2/2-way, closed, monostable
Process valve port 2		G1 1/2
Type of mounting		Screw-clamped Via thread
Sealing principle		Soft
Design		Angled design Diaphragm valve
