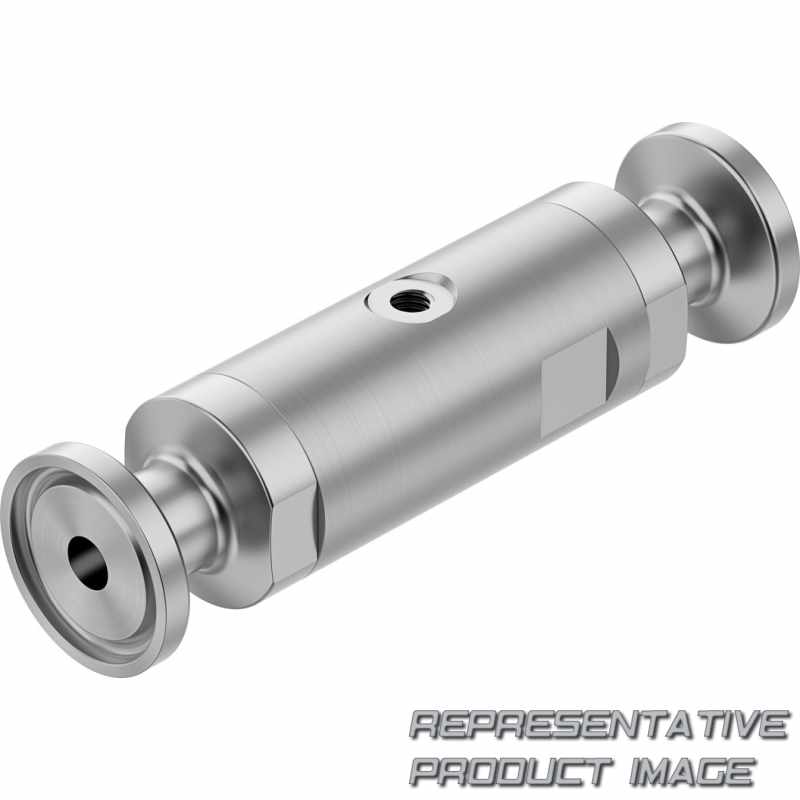

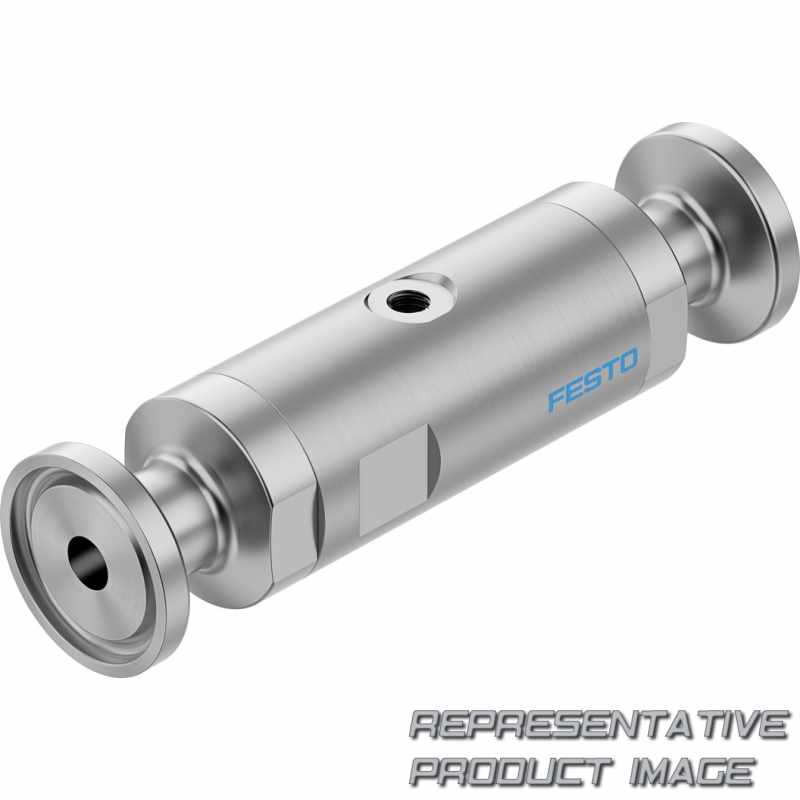

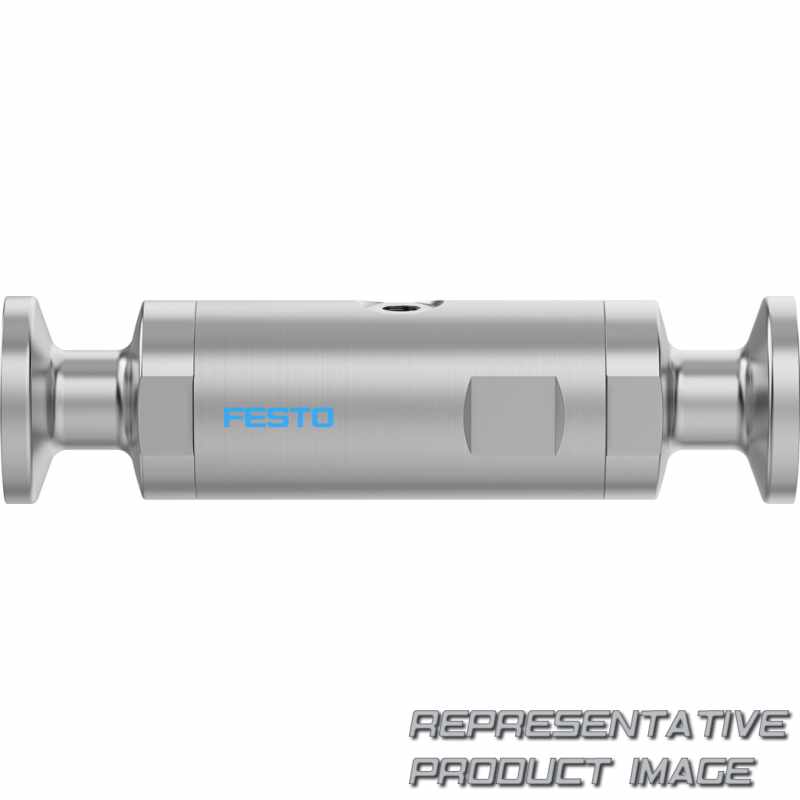

FESTO 2931681 pinch valve
VZQA-C-M22U-6-S5S5-V4V4E-4
£189.79
£214.57
-11%
available
with 3 to 7 days delivery to United States
Specifications
| Series (VZQA) | Pinch valve, pneumatically actuated |
|---|---|
| Product version (C) | Easy-to-clean design |
| Valve function (M22U) | 2/2-way valve, normally open |
| Nominal diameter DN [mm] (6) | 6 |
| Process valve connection type 1 (S5) | Clamp ferrule to DIN 32676, series A |
| Process valve connection type 2 (S5) | Clamp ferrule to DIN 32676, series A |
| Housing material (V4) | Stainless steel (chrome-nickel-molybdenum, austenit- ic/1.4401, 1.4404 (AISI 316L), 1.4408) |
| Housing cover material (V4) | Stainless steel |
|---|---|
| Shut-off element material (E) | EPDM |
| Pressure range of media (4) | 0 ... 4 bar |
| Type of sensing | None |
| Temperature range | Standard |
| Use in a potentially explosive atmosphere | No |
