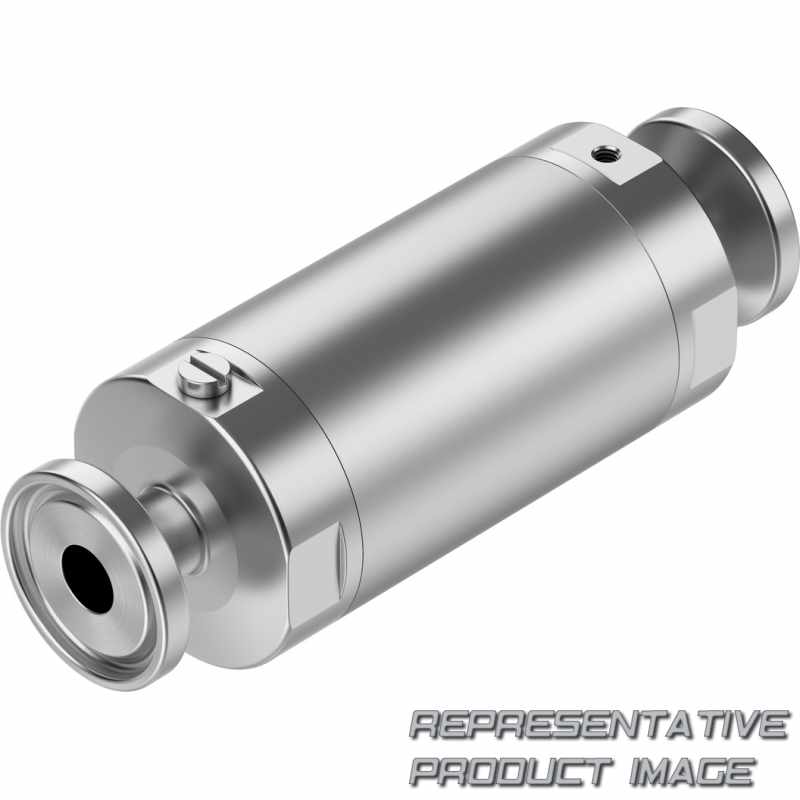

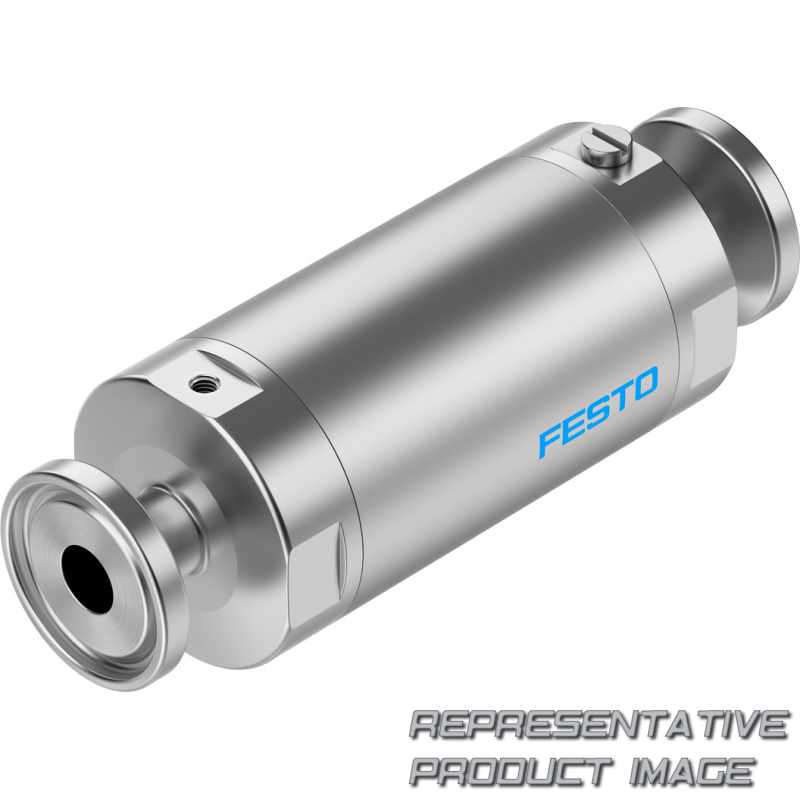

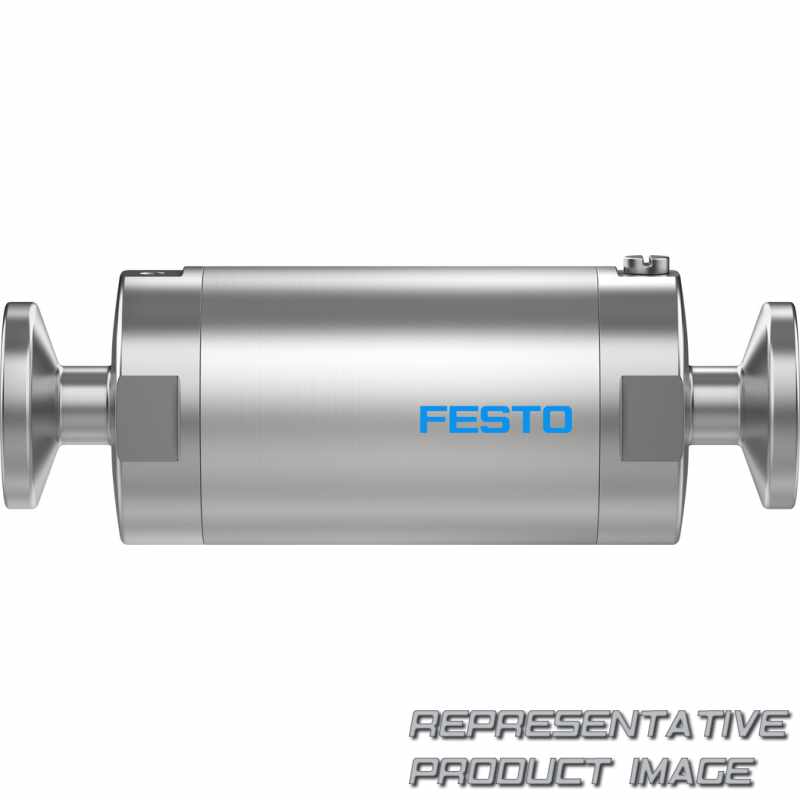

FESTO 8117023 pinch valve

Name: 8117023 FESTO
Brand: FESTO
SKU: 666583-en-gbp
Price: 648.75 GBP
Availability: InStock

VZQA-C-M22C-6-S1S1-V2V4S1-2

£648.75

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VZQA)	Pinch valve, pneumatically actuated
Product version (C)	Easy-to-clean design
Valve function (M22C)	2/2-way valve, normally closed
Nominal diameter DN [mm] (6)	6
Process valve connection type 1 (S1)	Clamp ferrule to ASME-BPE, type A
Process valve connection type 2 (S1)	Clamp ferrule to ASME-BPE, type A
Housing material (V2)	Stainless steel (nickel-chrome austenitic/1.4301, 1.4303, 1.4306 (AISI 304L))

Housing cover material (V4)	Stainless steel
Shut-off element material (S1)	Silicone
Pressure range of media (2)	0 ... 2 bar
Type of sensing	None
Temperature range	Standard
Use in a potentially explosive atmosphere	No

Material bowl		PPS
Product weight		302 g
Material seals		FPM
Material housing cover		High-alloy stainless steel
Material housing		High-alloy stainless steel
Note on materials		RoHS-compliant
Switching time on		125 ms
Storage temperature		5 °C ... 30 °C
Media temperature		-5 °C ... 90 °C
Medium		Compressed air to ISO 8573-1:2010 [-:-:1] Water
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:1]
Type of piloting		Externally controlled
Burst pressure		232 psi
Operating pressure		50,75 psi ... 87 psi
Flow direction		Reversible
Nominal size DN		6
Type of mounting		In-line installation
Sealing principle		Soft
Design		Pinch valve, pneumatically actuated

Suitable for use with food		See declaration of conformity
Material shut-off element		VMQ (silicone)
Material number housing cover		1.4404 / AISI 316L
Material number housing		1.43
LABS (PWIS) conformity		VDMA24364 zone III
Switching time off		125 ms
Flow rate Kv		0,7 m³/h
Ambient temperature		-5 °C ... 60 °C
Max. viscosity		4.000 mm²/s
Symbol		00992981
Auxiliary pilot air port 12		M3
Type of reset		Mechanical spring
Nominal pressure PN		10
Medium pressure		0 psi ... 29 psi
Valve function		2/2-way, closed, monostable
Connection Process valve		Clamp to ASME-BPE, type A
Mounting position		optional
Type of actuation		Pneumatic
