| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Note on degree of protection | In assembled state | ||
| Product weight | 10,9 g | ||
| Note on materials | RoHS-compliant | ||
| Material membrane | FFPM | ||
| Symbol | 00992967 | ||
| Note on flow rate Kv | For medium water Pressure difference 1 bar | ||
| Note on standard nominal flow rate | At pressure drop from 1 -> 0 bar (gaseous media) | ||
| Switching time off gaseous media | 5 ms | ||
| Switching time on gaseous media | 5 ms | ||
| Note on switching frequency | Dependent on the ambient temperature and installation state | ||
| Duty cycle | 100% in conjunction with holding current reduction Observe the notes on operating the solenoid valves. | ||
| Characteristic coil data | 12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W | ||
| Electrical power consumption | 3,5 W | ||
| Note on operational voltage range DC | With electrical sub-base VAVE-K1-… | ||
| Burst pressure | 333,5 psi | ||
| Medium pressure | 0 psi ... 29 psi | ||
| Ambient temperature | 15 °C ... 50 °C | ||
| Media temperature for fluids | 15 °C ... 50 °C | ||
| Note on the medium | Observe resistance of materials that come into contact with the media Maximum particle size 5 µm | ||

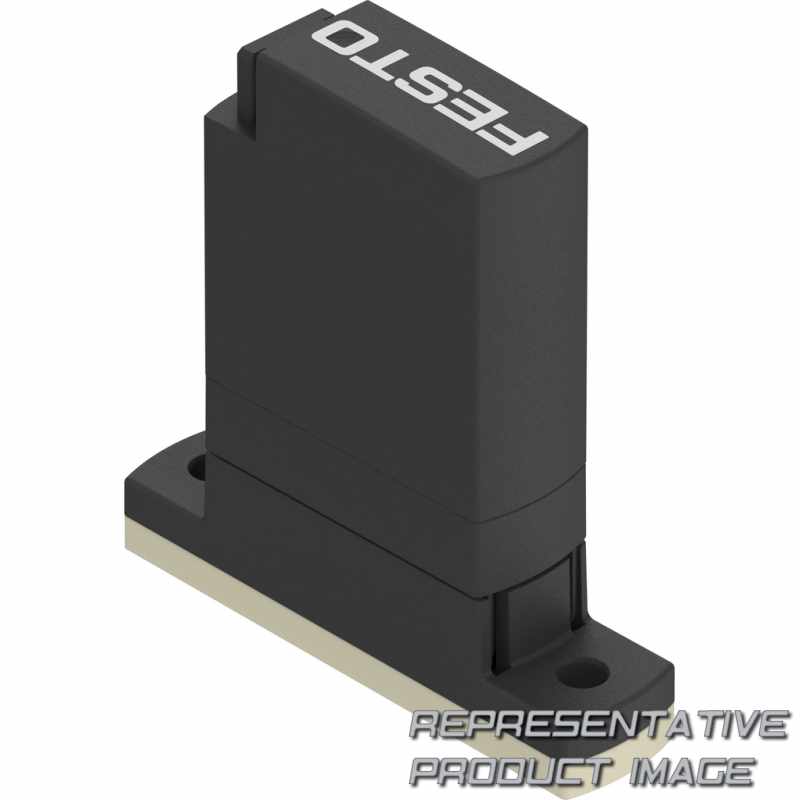

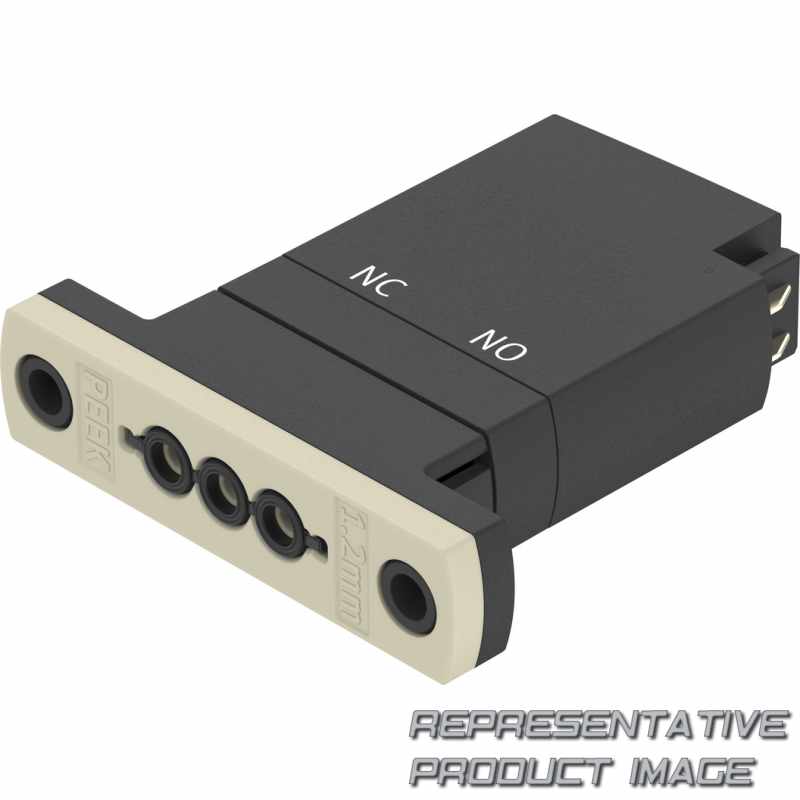

| Fluid connection | Flange | ||
| Size | 7 | ||
| Electrical connection 1, number of connections/cores | 2 | ||
| Electrical connection 1, connection type | Socket | ||
| Mounting position | optional | ||
| Type of reset | Mechanical spring | ||
| Type of actuation | Electric | ||
| Nominal size | 1,2 mm | ||
| Suitable for use with food | See supplementary material information | ||
| Sealing principle | Soft |
| Instructions on use | For indoor use only | ||
| Degree of protection | IP40 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Material seals | FFPM | ||
| Material housing | PA-reinforced PEEK PPA reinforced | ||
| Water flow rate at max. operating pressure | 0.5 l/min 0.03 m³/h | ||
| Flow rate Kv | 0,35 l/min | ||
| Standard nominal flow rate | 11 l/min | ||
| Switch-off time for fluids | 6 ms | ||
| Switch-on time for fluids | 5 ms | ||
| Max. switching frequency | 6 Hz | ||
| Insulation material class | B | ||
| Information on power consumption | Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… | ||
| Permissible voltage fluctuations | +/- 10 % | ||
| Operational voltage range DC | 12 V ... 26 V | ||
| Medium pressure, reversible | 0 psi ... 14,5 psi | ||
| Storage temperature | -20 °C ... 70 °C | ||
| Medium temperature gaseous media | 15 °C ... 50 °C | ||
| Internal volume | 16 µl fluid chamber valve 26 µl valve with fluid connections | ||
| Medium | Liquid media Gaseous media | ||
| Grid dimension | 7,5 mm | ||
| Electrical connection 1, connection pattern | 00997312 | ||
| Electrical connection 1, connector system | Connection pattern Q7 | ||
| Type of mounting | Via through-hole for M2 screw | ||
| Manual override | None | ||
| Type of piloting | Direct | ||
| Flow direction | Reversible with restrictions | ||
| Valve function | 3/2-way, monostable, open/closed | ||
| Material in contact with the medium | FFPM PEEK | ||

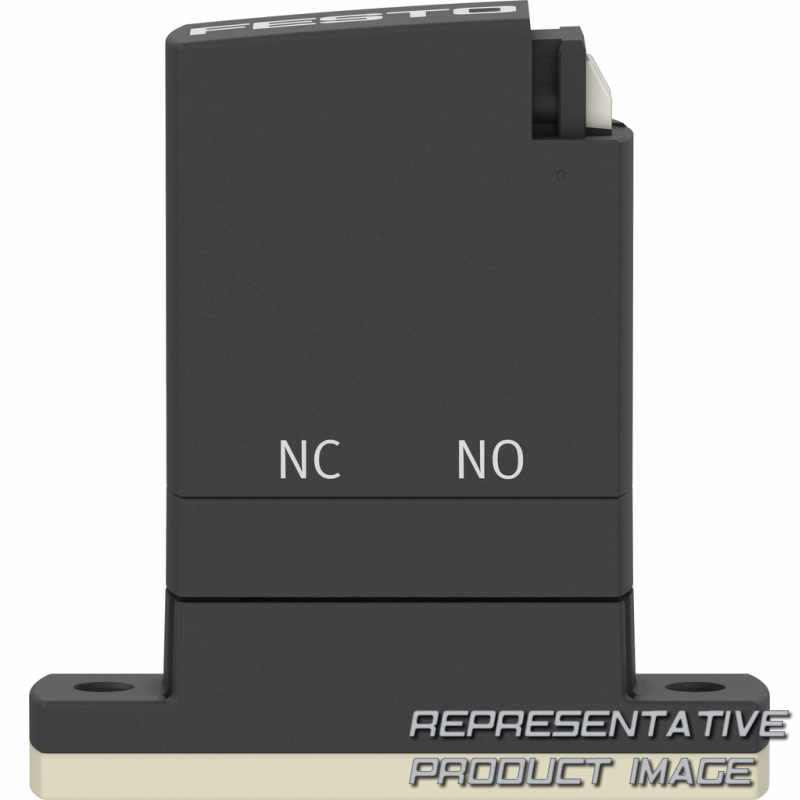

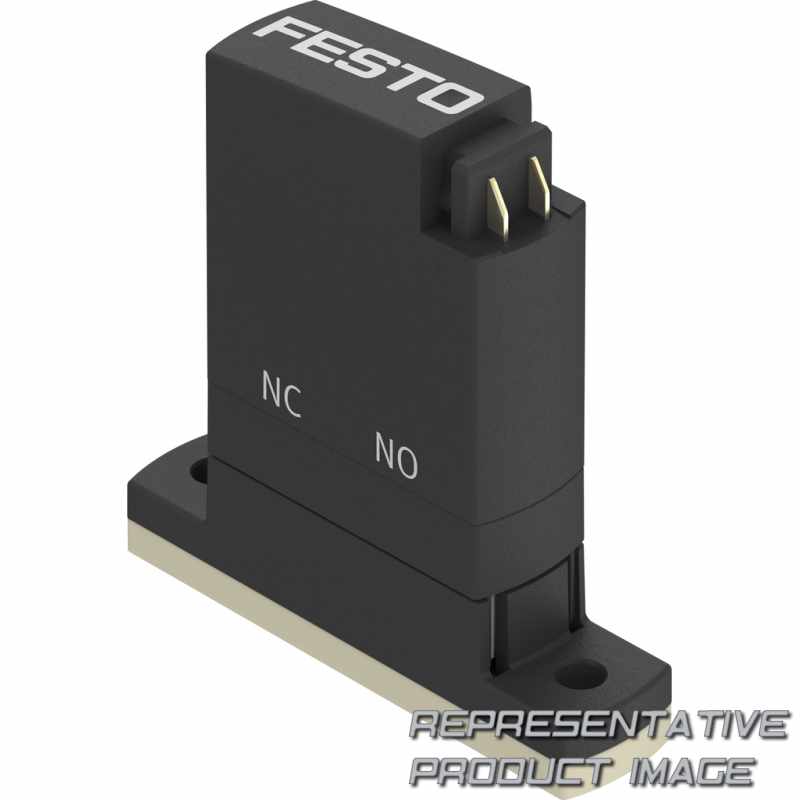

| Design | Rocker valve with diaphragm seal |
