FESTO 8096577 pneumatic valve

Name: 8096577 FESTO
Brand: FESTO
SKU: 661735-en-gbp
Price: 72.17 GBP
Availability: InStock

VUWS-LT30-B52-G38

£72.17

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VUWS)	Pneumatic valve
Directional control valve type (L)	In-line valve
Design principle (T)	Poppet valve
Size (30)	Size 30

Valve function (B52)	5/2-way valve, bistable
Reset method for monostable valves	None
Pneumatic connection (G38)	G3/8
Exhaust	No fitting

Material screws		Galvanised steel
Material housing		Painted die cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G3/8
Pneumatic connection, port 2		G3/8
Pilot air port 14		G1/8
Breather connection		Not ducted
Product weight		521 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time reversal		13 ms
lap		Underlap
Flow direction		Non-reversible
Type of piloting		Direct
Mounting position		optional
Exhaust-air function		With flow control option
Approval		c UL us - Recognized (OL)
Operating pressure		1,5 bar ... 10 bar
Standard nominal flow rate		1.800 l/min
Type of actuation		Pneumatic

Material piston slide		Wrought aluminium alloy
Material seals		HNBR NBR TPE-U(PU)
Pneumatic connection, port 5		G3/8
Pneumatic connection, port 3		G3/8
Pneumatic connection, port 1		G3/8
Pilot air port 12		G1/8
Type of mounting		On manifold rail With through-hole Either:
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion protection		The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Pilot pressure		1,5 bar ... 10 bar

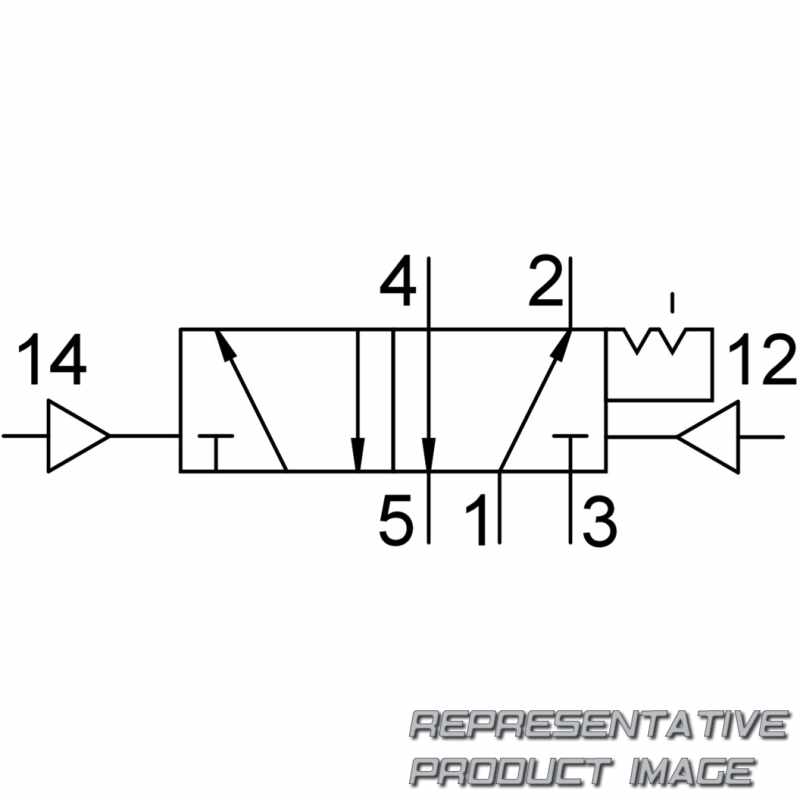

Symbol		00995840
Pilot air supply		Internal
Manual override		None
Sealing principle		Soft
Nominal size		8,7 mm
Design		Poppet seat
pneumatic working port		G3/8
Valve size		31 mm
Valve function		5/2 double solenoid
