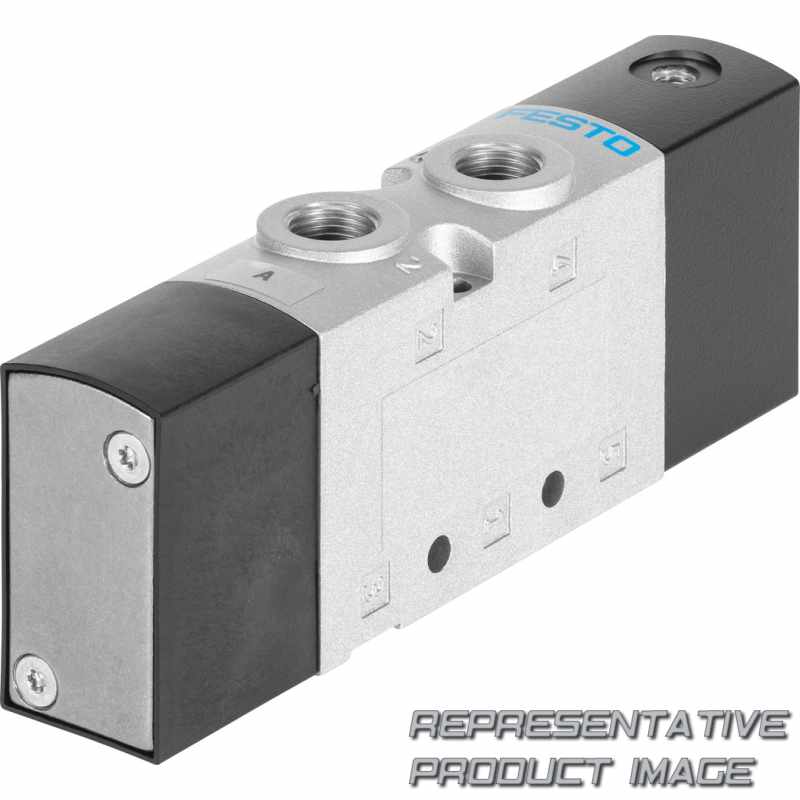

FESTO 575601 pneumatic valve

Name: 575601 FESTO
Brand: FESTO
SKU: 661603-en-gbp
Price: 51.8 GBP
Availability: InStock

VUWS-L30-M52-E-G38

£51.80 ~~£63.16~~ -17%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VUWS)	Pneumatic valve
Directional control valve type (L)	In-line valve
Design principle	Piston spool
Size (30)	Size 30

Valve function (M52)	5/2-way valve, monostable
Reset method for monostable valves (E)	Pneumatic spring, external
Pneumatic connection (G38)	G3/8
Exhaust	No fitting

Material screws		Nickel-plated steel
Material housing		Die-cast aluminium Painted
Note on materials		RoHS-compliant
Pneumatic connection, port 4		G3/8
Pneumatic connection, port 2		G3/8
Pilot air port 14		G1/8
Type of mounting		On manifold rail With through-hole Either:
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion protection		The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Switching time off		59 ms
lap		Positive overlap
Flow direction		Reversible
Type of piloting		Direct
Mounting position		optional
Exhaust-air function		With flow control option
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
pneumatic working port		G3/8
Valve size		31 mm
Valve function		5/2-way, monostable

Material piston slide		Wrought aluminium alloy
Material seals		HNBR NBR
Pneumatic connection, port 5		G3/8
Pneumatic connection, port 3		G3/8
Pneumatic connection, port 1		G3/8
Breather connection		Not ducted
Product weight		546 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time on		24 ms
Pilot pressure		2,5 bar ... 10 bar

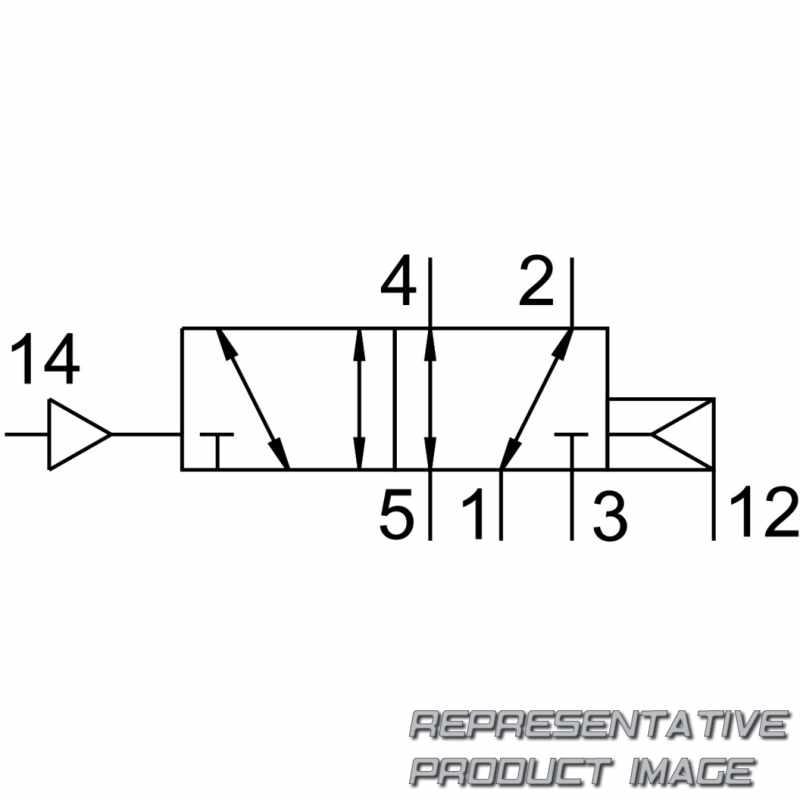

Symbol		00995404
Pilot air supply		External
Manual override		None
Sealing principle		Soft
Nominal size		9,4 mm
Type of reset		Pneumatic spring
Operating pressure		-0,9 bar ... 10 bar
Standard nominal flow rate		2.300 l/min
Type of actuation		Pneumatic
