FESTO 8033557 solenoid valve

Name: 8033557 FESTO
Brand: FESTO
SKU: 670100-en-gbp
Price: 67.98 GBP
Availability: SoldOut

VUVG-L18-P53E-G14-P1

£67.98 ~~£79.75~~ -14%

Limited stock only available on quotation

Specifications

Series (VUVG)	Solenoid valve
Directional control valve type (L)	In-line valve
Design principle	Piston spool
Size (18)	Size 18
Valve function (P53E)	5/3-way valve, mid-position exhausted\|
Reset method for monostable/single solenoid valves	None
Pilot air	Internal

Manual override	None
Pneumatic connection (G14)	G1/4
Exhaust	No fitting
Nominal operating voltage	None
Electrical connection (P1)	Interface for pilot valve (CNOMO small)
Circuitry	None

Material housing		Wrought aluminium alloy
Note on materials		RoHS-compliant
Pneumatic connection, port 5		G1/4
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4
Electrical connection		Via electric pilot valve
Ambient temperature		-5 °C ... 60 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Max. negative test pulse with 1 signal		900 µs
Duty cycle		100%
Switching time on		15 ms
Pilot pressure		3 bar ... 8 bar

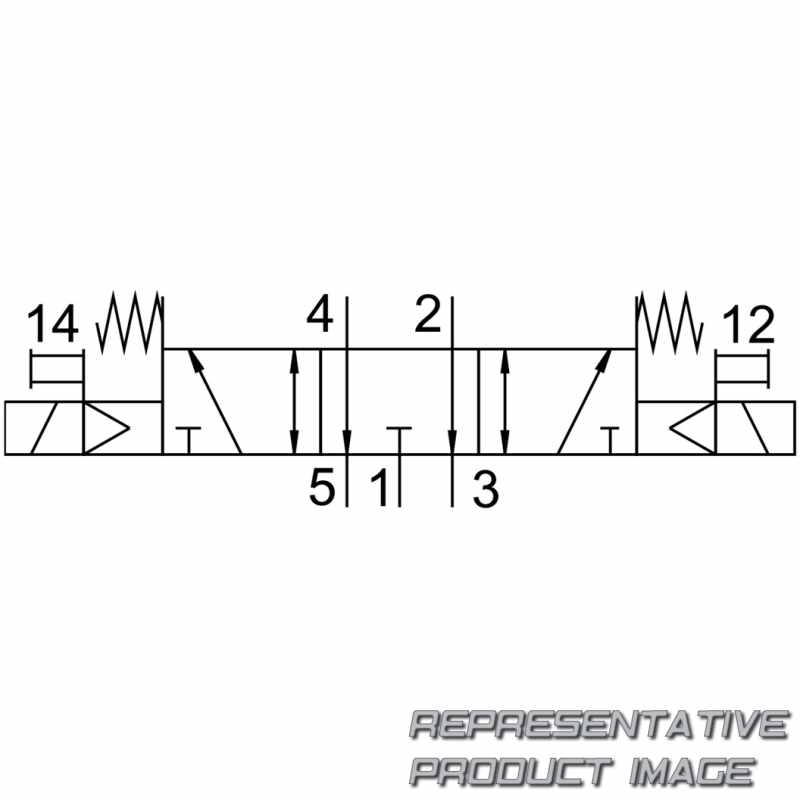

Symbol		00992894
Type of piloting		Pilot actuated
Sealing principle		Soft
Nominal size		6,3 mm
Certificate issuing authority		UL MH19482
Type of reset		Mechanical spring
Operating pressure		3 bar ... 8 bar
Standard nominal flow rate		910 l/min
Type of actuation		Electric

Material seals		HNBR NBR
Pilot control interface		To ISO 15218
Pneumatic connection, port 4		G1/4
Pneumatic connection, port 2		G1/4
Type of mounting		On manifold rail With through-hole Either:
Product weight		136 g
Media temperature		-5 °C ... 60 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. positive test pulse with 0 signal		700 µs
Switching time reversal		21 ms
Switching time off		32 ms
lap		Indefinite overlap
Pilot air supply		Internal
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 With electric pilot valve and plug socket
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
pneumatic working port		G1/4
Valve size		18 mm
Valve function		5/3 exhausted
