FESTO 576001 solenoid valve

Name: 576001 FESTO
Brand: FESTO
SKU: 673260-en-gbp
Price: 90.27 GBP
Availability: InStock

VUVB-ST12-M32C-MZD-QX-1T1

£90.27

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material piston slide		Wrought aluminium alloy
Material seals		NBR TPE-U(PU)
Pneumatic connection, port 5		Sub-base
Pneumatic connection, port 1		Sub-base
Type of mounting		On sub-base
Product weight		26,3 g
Sound pressure level		85 dB(A)
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.0 W
Max. positive test pulse with 0 signal		800 µs
Switching time on		6 ms
Pilot pressure		2 bar ... 8 bar

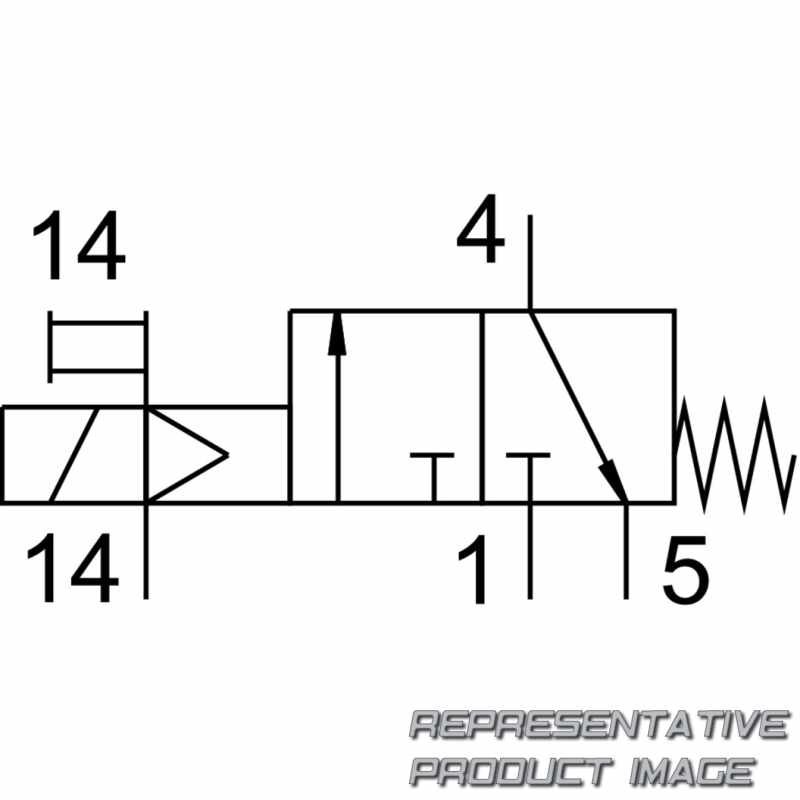

Symbol		00992123
Pilot air supply		External
Manual override		Detenting Non-detenting
Sealing principle		Soft
Nominal size		4 mm
Design		Poppet valve with spring return
pneumatic working port		QS-4 QS-6
Valve size		12 mm
Valve function		3/2-way, closed, monostable

Material housing		PA-reinforced
Note on materials		RoHS-compliant
Pneumatic connection, port 3		Sub-base
Auxiliary pilot air port 14		Sub-base
Electrical connection		Via sub-base
Ambient temperature		-5 °C ... 60 °C
Media temperature		-5 °C ... 60 °C
Shock resistance		Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Max. negative test pulse with 1 signal		300 µs
Duty cycle		100%
Switching time off		14 ms
Note on operating pressure		0 - 0.8 MPa with ext. pilot air 0 - 8 bar with external pilot air
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		Without flow control option
Degree of protection		IP65
Operating pressure		2 bar ... 8 bar
Standard nominal flow rate		240 l/min ... 400 l/min
Type of actuation		Electric
