FESTO 546734 basic valve

Name: 546734 FESTO
Brand: FESTO
SKU: 663636-en-gbp
Price: 101.06 GBP
Availability: InStock

VSVA-B-T32U-A-A2-P1

£101.06

available with 3 to 7 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (T32U)	2x3/2-way valve, normally open
Additional features	Without
Reset method for monostable/single solenoid valves (A)	Pneumatic spring
Pilot air	Internal

Manual override	Without
Pneumatic connection (A2)	18 mm (02) ISO 15407-1/-2
Nominal operating voltage	None
Electrical connection (P1)	Interface for pilot valve size 15 mm to ISO 15218 (CNOMO)
Position sensing	None
Display	None

Material screws		Steel Galvanised
Material seals		HNBR NBR
Pilot control interface		To ISO 15218
Pneumatic connection, port 4		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 2		Sub-base size 18 mm to ISO 15407-1
Pilot exhaust port 82/84		Ducted Not ducted as per standard
Auxiliary pilot air port 12		Sub-base size 18 mm to ISO 15407-1
Product weight		98 g
Ambient temperature		-5 °C ... 50 °C
Sound pressure level		85 dB(A)
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Flow rate of pneumatically interlinked valve		400 l/min
Flow rate of valve		600 l/min
Signal status display		LED

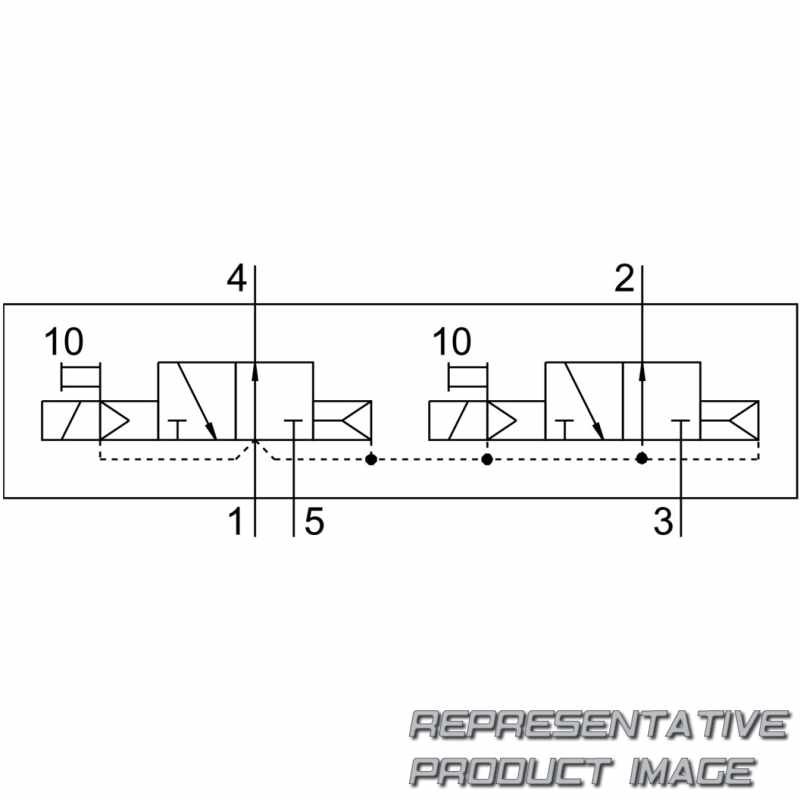

Symbol		00991807
Pilot air supply		Internal
Conforms to standard		ISO 15407-1 VDMA 24563
Sealing principle		Soft
Nominal size		5 mm
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
pneumatic working port		Sub-base size 18 mm to ISO 15407-1 Sub-base size 02 to VDMA 24563 G1/8
Valve size		18 mm
Valve function		2x3/2-way, open, monostable

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 5		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 3		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 1		Sub-base size 18 mm to ISO 15407-1
Auxiliary pilot air port 14		Sub-base size 18 mm to ISO 15407-1
Type of mounting		On sub-base
Max. tightening torque for valve mounting		0,9 Nm ... 1,1 Nm
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Duty cycle		100%
Flow rate of valve on individual sub-base		450 l/min
Pilot pressure		3 bar ... 10 bar
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 NEMA 4
Type of reset		Pneumatic spring
Operating pressure		2 bar ... 10 bar
Standard nominal flow rate		400 l/min
Type of actuation		Electric
