FESTO 566998 solenoid valve

Name: 566998 FESTO
Brand: FESTO
SKU: 678300-en-gbp
Price: 305.79 GBP
Availability: InStock

VSVA-B-P53E-D-D2-1R5L

£305.79

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool

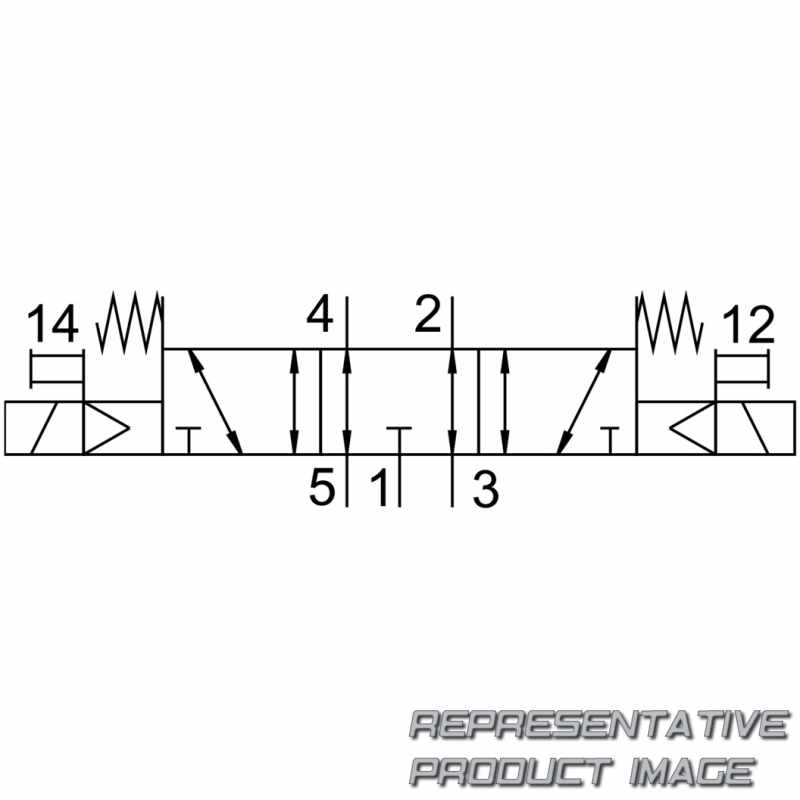

Valve function (P53E)	5/3-way valve, mid-position exhausted
Additional features (D)	Switching position 14 detenting, 12 mechanical spring
Reset method for monostable/single solenoid valves	Without
Pilot air	Internal

Material screws		Steel Galvanised
Material seals		FPM HNBR NBR
Pneumatic connection, port 5		Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 2 to ISO 5599-1
Electrical connection		3-pin M12x1 Central plug Round design
Ambient temperature		-5 °C ... 50 °C
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 4.6 W
Nominal pick-up current per solenoid coil		165 mA up to 30 ms
Max. positive test pulse with 0 signal		1.000 µs
Switching time on		23 ms
Flow rate of pneumatically interlinked valve		2.700 l/min
Flow rate of valve		3.600 l/min
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		59 mm
Degree of protection		IP65 NEMA 4
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		C-Tick c CSA us (OL) c UL us - Recognized (OL)
Operating pressure		3 bar ... 10 bar
pneumatic working port		Sub-base size 2 to ISO 5599-1 G3/8
Construction width		52 mm
Valve function		5/3 exhausted

Material housing		Die-cast aluminium PA
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 2 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 2 to ISO 5599-1
Type of mounting		On sub-base
Product weight		780 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Nominal current with current reduction		35 mA after 30 ms
Max. negative test pulse with 1 signal		3.500 µs
Duty cycle		100%
Switching time off		60 ms
Flow rate of valve on individual sub-base		2.300 l/min
Signal status display		LED
Symbol		00991443
Pilot air supply		Internal
Manual override		Detenting Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option Via throttle plate Via individual sub-base
Nominal size		15 mm
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		2.700 l/min
Type of actuation		Electric
